官方例子效果图：
可以横向以及纵向鼠标拖拽表格滑动。可以手动调整列宽等功能
1、安装gantt-elastic
npm install --save gantt-elastic
2、安装gantt-elastic-header
npm install --save gantt-elastic-header
3、当然你项目里面没有安装dayjs的话还需要安装一下，因为他官网的例子用到了
npm install dayjs --save

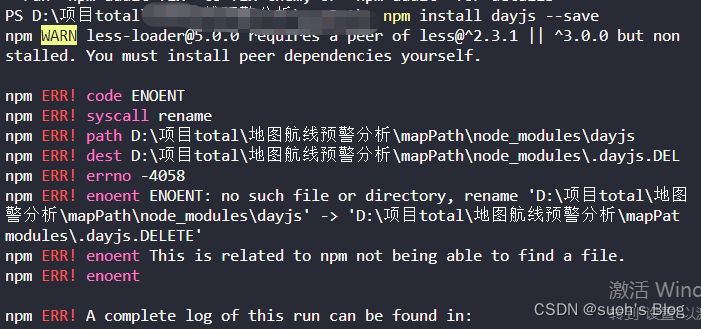

4、到这里如果你项目里面安了less-loader可能会报错
说你的less-loader版本太高，必须是2.3.1或者3.0.0版本 ，因为我的是5.0版本的
此时需要再次安装指定版本的less-loader
npm install less-loader@3.0.0 --save

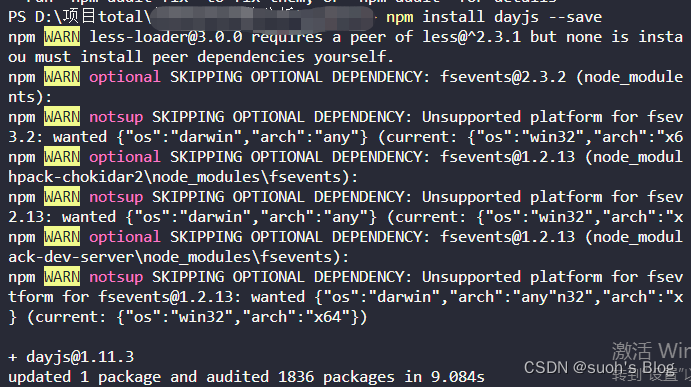

然后再次安装dayjs。就ok了
5、官方例子全代码。复制粘贴即可。
<template>
<q-page class="q-pa-sm">
<gantt-elastic :options="options" :tasks="tasks" @tasks-changed="tasksUpdate" @options-changed="optionsUpdate" @dynamic-style-changed="styleUpdate">
<gantt-header slot="header"></gantt-header>
</gantt-elastic>
<div class="q-mt-md" />
<q-btn @click="addTask" icon="mdi-plus" label="Add task" />
</q-page>
</template>
<style>
</style>
<script>
import GanttElastic from "gantt-elastic";
import GanttHeader from "gantt-elastic-header";
import dayjs from "dayjs";
// just helper to get current dates
function getDate(hours) {
const currentDate = new Date();
const currentYear = currentDate.getFullYear();
const currentMonth = currentDate.getMonth();
const currentDay = currentDate.getDate();
const timeStamp = new Date(
currentYear,
currentMonth,
currentDay,
0,
0,
0
).getTime();
return new Date(timeStamp hours * 60 * 60 * 1000).getTime();
}
let tasks = [
{
id: 1,
label: "大任务1",
user:
'<a href="https://www.google.com/search?q=John Doe" target="_blank" style="color:#0077c0;">John Doe</a>',
start: getDate(-24 * 5),
duration: 15 * 24 * 60 * 60 * 1000,
percent: 85,
type: "project"
//collapsed: true,
},
{
id: 2,
label: "With great power comes great responsibility",
user:
'<a href="https://www.google.com/search?q=Peter Parker" target="_blank" style="color:#0077c0;">Peter Parker</a>',
parentId: 1,
start: getDate(-24 * 4),
duration: 4 * 24 * 60 * 60 * 1000,
percent: 50,
type: "milestone",
collapsed: true,
style: {
base: {
fill: "#1EBC61",
stroke: "#0EAC51"
}
}
},
{
id: 3,
label: "Courage is being scared to death, but saddling up anyway.",
user:
'<a href="https://www.google.com/search?q=John Wayne" target="_blank" style="color:#0077c0;">John Wayne</a>',
parentId: 2,
start: getDate(-24 * 3),
duration: 2 * 24 * 60 * 60 * 1000,
percent: 100,
type: "task"
},
{
id: 4,
label: "Put that toy AWAY!",
user:
'<a href="https://www.google.com/search?q=Clark Kent" target="_blank" style="color:#0077c0;">Clark Kent</a>',
start: getDate(-24 * 2),
duration: 2 * 24 * 60 * 60 * 1000,
percent: 50,
type: "task",
dependentOn: [3]
},
{
id: 5,
label:
"One billion, gajillion, fafillion... shabadylu...mil...shabady......uh, Yen.",
user:
'<a href="https://www.google.com/search?q=Austin Powers" target="_blank" style="color:#0077c0;">Austin Powers</a>',
parentId: 4,
start: getDate(0),
duration: 2 * 24 * 60 * 60 * 1000,
percent: 10,
type: "milestone",
style: {
base: {
fill: "#0287D0",
stroke: "#0077C0"
}
}
},
{
id: 6,
label: "Butch Mario and the Luigi Kid",
user:
'<a href="https://www.google.com/search?q=Mario Bros" target="_blank" style="color:#0077c0;">Mario Bros</a>',
parentId: 5,
start: getDate(24),
duration: 1 * 24 * 60 * 60 * 1000,
percent: 50,
type: "task",
collapsed: true,
style: {
base: {
fill: "#8E44AD",
stroke: "#7E349D"
}
}
},
{
id: 7,
label: "Devon, the old man wanted me, it was his dying request",
user:
'<a href="https://www.google.com/search?q=Knight Rider" target="_blank" style="color:#0077c0;">Knight Rider</a>',
parentId: 2,
dependentOn: [6],
start: getDate(24 * 2),
duration: 4 * 60 * 60 * 1000,
percent: 20,
type: "task",
collapsed: true
},
{
id: 8,
label: "Hey, Baby! Anybody ever tell you I have beautiful eyes?",
user:
'<a href="https://www.google.com/search?q=Johhny Bravo" target="_blank" style="color:#0077c0;">Johhny Bravo</a>',
parentId: 7,
dependentOn: [7],
start: getDate(24 * 3),
duration: 1 * 24 * 60 * 60 * 1000,
percent: 0,
type: "task"
},
{
id: 9,
label:
"This better be important, woman. You are interrupting my very delicate calculations.",
user:
'<a href="https://www.google.com/search?q=Dexter\'s Laboratory" target="_blank" style="color:#0077c0;">Dexter\'s Laboratory</a>',
parentId: 8,
dependentOn: [8, 7],
start: getDate(24 * 4),
duration: 4 * 60 * 60 * 1000,
percent: 20,
type: "task",
style: {
base: {
fill: "#8E44AD",
stroke: "#7E349D"
}
}
},
{
id: 10,
label: "current task",
user:
'<a href="https://www.google.com/search?q=Johnattan Owens" target="_blank" style="color:#0077c0;">Johnattan Owens</a>',
start: getDate(24 * 5),
duration: 24 * 60 * 60 * 1000,
percent: 0,
type: "task"
},
{
id: 11,
label: "test task",
user:
'<a href="https://www.google.com/search?q=Johnattan Owens" target="_blank" style="color:#0077c0;">Johnattan Owens</a>',
start: getDate(24 * 6),
duration: 24 * 60 * 60 * 1000,
percent: 0,
type: "task"
},
{
id: 12,
label: "test task",
user:
'<a href="https://www.google.com/search?q=Johnattan Owens" target="_blank" style="color:#0077c0;">Johnattan Owens</a>',
start: getDate(24 * 7),
duration: 24 * 60 * 60 * 1000,
percent: 0,
type: "task",
parentId: 11
},
{
id: 13,
label: "test task",
user:
'<a href="https://www.google.com/search?q=Johnattan Owens" target="_blank" style="color:#0077c0;">Johnattan Owens</a>',
start: getDate(24 * 8),
duration: 24 * 60 * 60 * 1000,
percent: 0,
type: "task"
},
{
id: 14,
label: "test task",
user:
'<a href="https://www.google.com/search?q=Johnattan Owens" target="_blank" style="color:#0077c0;">Johnattan Owens</a>',
start: getDate(24 * 9),
duration: 24 * 60 * 60 * 1000,
percent: 0,
type: "task"
},
{
id: 15,
label: "test task",
user:
'<a href="https://www.google.com/search?q=Johnattan Owens" target="_blank" style="color:#0077c0;">Johnattan Owens</a>',
start: getDate(24 * 16),
duration: 24 * 60 * 60 * 1000,
percent: 0,
type: "task"
}
];
let options = {
taskMapping: {
progress: "percent"
},
maxRows: 100,
maxHeight: 500,
title: {
label: "Your project title as html (link or whatever...)",
html: false
},
row: {
height: 24
},
calendar: {
hour: {
display: true
}
},
chart: {
progress: {
bar: false
},
expander: {
display: true
}
},
taskList: {
expander: {
straight: false
},
columns: [
{
id: 1,
label: "ID",
value: "id",
width: 40
},
{
id: 2,
label: "Description",
value: "label",
width: 200,
expander: true,
html: true,
events: {
click({ data, column }) {
alert("description clicked!\n" data.label);
}
}
},
{
id: 3,
label: "Assigned to",
value: "user",
width: 130,
html: true
},
{
id: 3,
label: "Start",
value: task => dayjs(task.start).format("YYYY-MM-DD"),
width: 78
},
{
id: 4,
label: "Type",
value: "type",
width: 68
},
{
id: 5,
label: "%",
value: "progress",
width: 35,
style: {
"task-list-header-label": {
"text-align": "center",
width: "100%"
},
"task-list-item-value-container": {
"text-align": "center",
width: "100%"
}
}
}
]
},
locale: {
name: "en",
Now: "Now",
"X-Scale": "Zoom-X",
"Y-Scale": "Zoom-Y",
"Task list width": "Task list",
"Before/After": "Expand",
"Display task list": "Task list"
}
};
export default {
name: "Gantt",
components: {
GanttElastic,
GanttHeader
},
data() {
return {
tasks,
options,
dynamicStyle: {},
lastId: 16
};
},
methods: {
addTask() {
this.tasks.push({
id: this.lastId ,
label:
'<a href="https://images.pexels.com/photos/423364/pexels-photo-423364.jpeg?auto=compress&cs=tinysrgb&h=650&w=940" target="_blank" style="color:#0077c0;">Yeaahh! you have added a task bro!</a>',
user:
'<a href="https://images.pexels.com/photos/423364/pexels-photo-423364.jpeg?auto=compress&cs=tinysrgb&h=650&w=940" target="_blank" style="color:#0077c0;">Awesome!</a>',
start: getDate(24 * 3),
duration: 1 * 24 * 60 * 60 * 1000,
percent: 50,
type: "project"
});
},
tasksUpdate(tasks) {
this.tasks = tasks;
},
optionsUpdate(options) {
this.options = options;
},
styleUpdate(style) {
this.dynamicStyle = style;
}
}
};

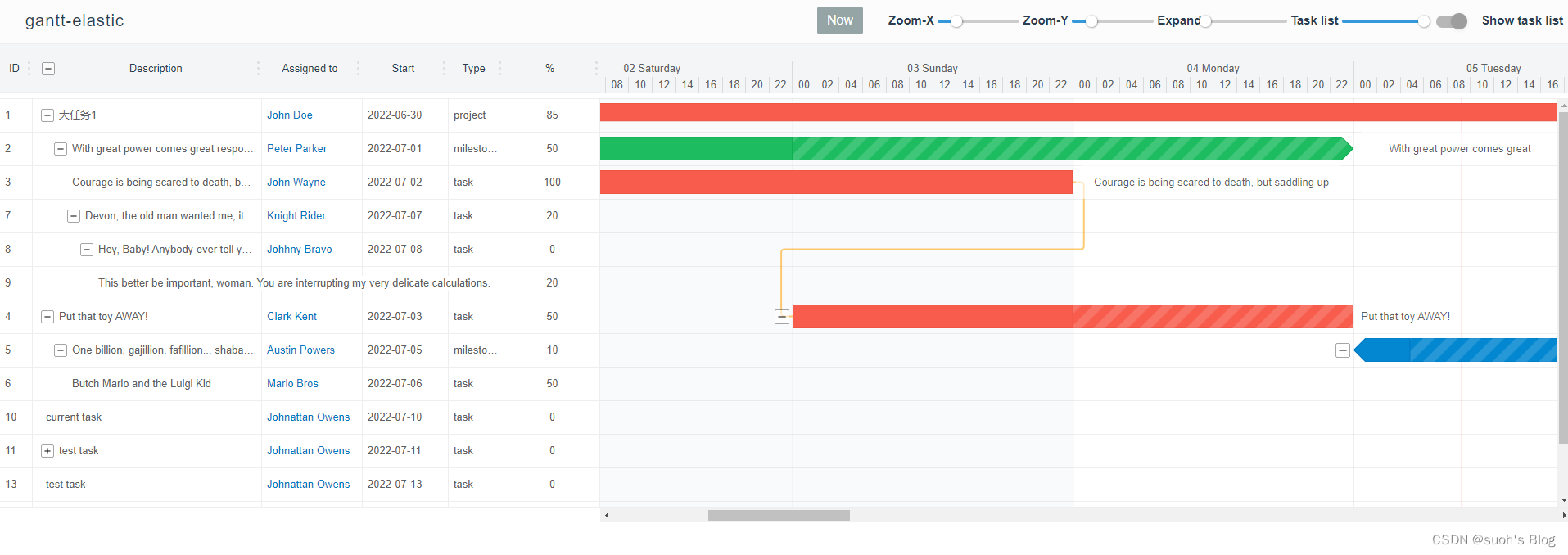

</script>运行成功就是这样的页面了。
当然他不一定符合你的需求比如表头设置，因此需要通过设置参数数据去实现不同的效果。
缺点：没有开发文档，英文的都没有，很多参数设置需要自己研究。如果改动不大的话还可以参考，跟需求差的多的话不建议使用~~
