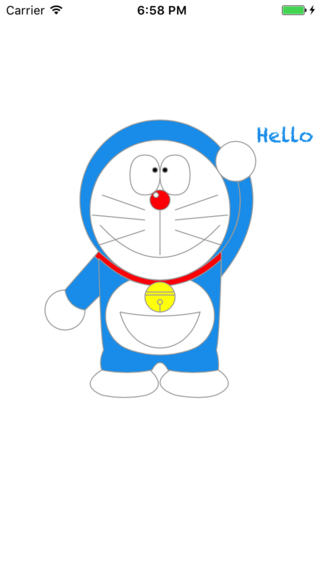

看到这张图，是不是觉得挺萌的，那是如何实现的呢？在iOS中有一个类叫UIBezierPath（贝塞尔曲线），这两天研究了一下UIBezierPath和CAShapeLayer，根据别人分享的教程，画了这个萌萌的哆啦A梦。
UIBezierPath： UIBezierPath是在 UIKit 中的一个类，继承于NSObject,可以创建基于矢量的路径.此类是Core Graphics框架关于path的一个OC封装。使用此类可以定义常见的圆形、多边形等形状 。我们使用直线、弧（arc）来创建复杂的曲线形状。每一个直线段或者曲线段的结束的地方是下一个的开始的地方。每一个连接的直线或者曲线段的集合成为subpath。一个UIBezierPath对象定义一个完整的路径包括一个或者多个subpaths。
CAShapeLayer： 继承于CALayer。 每个CAShapeLayer对象都代表着将要被渲染到屏幕上的一个任意的形状(shape)。具体的形状由其path(类型为CGPathRef)属性指定。 普通的CALayer是矩形，所以需要frame属性。CAShapeLayer它本身没有形状，它的形状来源于其属性path 。CAShapeLayer有不同于CALayer的属性，它从CALayer继承而来的属性在绘制时是不起作用的。
基本用法：
画圆弧： (instancetype)bezierPathWithArcCenter:(CGPoint)center radius:(CGFloat)radius startAngle:(CGFloat)startAngle endAngle:(CGFloat)endAngle clockwise:(BOOL)clockwise;
- center表示圆心
- radius表示半径
- startAngle表示开始角度
- endAngle表示结束角度
- clockwise表示是否是顺时针方向
画二元曲线和三元曲线，一般和moveToPoint配合使用。
- 二元曲线：- (void)addQuadCurveToPoint:(CGPoint)endPoint controlPoint:(CGPoint)controlPoint
- 三元曲线：- (void)addCurveToPoint:(CGPoint)endPoint controlPoint1:(CGPoint)controlPoint1 controlPoint2:(CGPoint)controlPoint2
其中 endPoint表示:曲线的终点 ；controlPoint表示:画曲线的基准点
知道基本画法后我们就可以画哆啦A梦了。
1、先画头部。先画一个圆。
// 确定头部所在的圆心 CGFloat headCornerRadius=80; CGFloat arcCenterX=self.view.frame.size.width/2; CGFloat arcCenterY= 120 headCornerRadius; //画头部 CAShapeLayer *headLayer=[[CAShapeLayer alloc] init]; UIBezierPath *headPath=[UIBezierPath bezierPathWithRoundedRect:CGRectMake(self.view.frame.size.width/2-headCornerRadius, 120, headCornerRadius*2, headCornerRadius*2) cornerRadius:headCornerRadius]; [self setLayer:headLayer path:headPath];
2、画脸部。画一个比头部小点的圆，与头部圆的底部内切。
//脸 CAShapeLayer *faceLayer=[CAShapeLayer layer]; UIBezierPath *facePath=[UIBezierPath bezierPathWithArcCenter:CGPointMake(self.view.frame.size.width/2, 120 headCornerRadius 10) radius:70 startAngle:M_PI endAngle:3*M_PI clockwise:YES]; [self setLayer:faceLayer path:facePath];
3、画眼部
//左眼 CAShapeLayer *leftEyeLayer = [CAShapeLayer layer]; UIBezierPath *leftEyePath = [UIBezierPath bezierPath]; [leftEyePath moveToPoint:CGPointMake(arcCenterX-30, arcCenterY-25)]; [leftEyePath addQuadCurveToPoint:CGPointMake(arcCenterX-15, arcCenterY-45) controlPoint:CGPointMake(arcCenterX-30, arcCenterY-45)]; [leftEyePath addQuadCurveToPoint:CGPointMake(arcCenterX, arcCenterY-25) controlPoint:CGPointMake(arcCenterX, arcCenterY-45)]; [leftEyePath addQuadCurveToPoint:CGPointMake(arcCenterX-15, arcCenterY-5) controlPoint:CGPointMake(arcCenterX, arcCenterY-5)]; [leftEyePath addQuadCurveToPoint:CGPointMake(arcCenterX-30, arcCenterY-25) controlPoint:CGPointMake(arcCenterX-30, arcCenterY-5)]; [self setLayer:leftEyeLayer path:leftEyePath]; //左眼珠 CAShapeLayer *leftEyeballLayer = [CAShapeLayer layer]; UIBezierPath *leftEyeballPath = [UIBezierPath bezierPathWithArcCenter:CGPointMake(arcCenterX-5, arcCenterY-30) radius:2.5 startAngle:0 endAngle:2*M_PI clockwise:YES]; [self setLayer:leftEyeballLayer path:leftEyeballPath ]; //右眼 CAShapeLayer *rightEyeLayer = [CAShapeLayer layer]; UIBezierPath *rightEyePath = [UIBezierPath bezierPath]; [rightEyePath moveToPoint:CGPointMake(arcCenterX, arcCenterY-25)]; [rightEyePath addQuadCurveToPoint:CGPointMake(arcCenterX 15, arcCenterY-45) controlPoint:CGPointMake(arcCenterX, arcCenterY-45)]; [rightEyePath addQuadCurveToPoint:CGPointMake(arcCenterX 30, arcCenterY-25) controlPoint:CGPointMake(arcCenterX 30, arcCenterY-45)]; [rightEyePath addQuadCurveToPoint:CGPointMake(arcCenterX 15, arcCenterY-5) controlPoint:CGPointMake(arcCenterX 30, arcCenterY-5)]; [rightEyePath addQuadCurveToPoint:CGPointMake(arcCenterX, arcCenterY-25) controlPoint:CGPointMake(arcCenterX, arcCenterY-5)]; [self setLayer:rightEyeLayer path:rightEyePath ]; //右眼珠 CAShapeLayer *rightEyeballLayer = [CAShapeLayer layer]; UIBezierPath *rightEyeballPath = [UIBezierPath bezierPathWithArcCenter:CGPointMake(arcCenterX 5, arcCenterY-30) radius:2.5 startAngle:0 endAngle:2*M_PI clockwise:YES]; [self setLayer:rightEyeballLayer path:rightEyeballPath];
4、画鼻子、嘴巴、胡须
//鼻子 CAShapeLayer *noseLayer = [CAShapeLayer layer]; UIBezierPath *nosePath = [UIBezierPath bezierPathWithArcCenter:CGPointMake(arcCenterX, arcCenterY) radius:10 startAngle:0 endAngle:2*M_PI clockwise:YES]; [self setLayer:noseLayer path:nosePath ]; //鼻子光晕 CAShapeLayer *noseHaloLayer = [CAShapeLayer layer]; UIBezierPath *noseHaloPath = [UIBezierPath bezierPathWithArcCenter:CGPointMake(arcCenterX-4, arcCenterY-5) radius:2.5 startAngle:0 endAngle:2*M_PI clockwise:YES]; [self setLayer:noseHaloLayer path:noseHaloPath ]; //嘴巴 CAShapeLayer *mouthLayer = [CAShapeLayer layer]; UIBezierPath *mouthPath = [UIBezierPath bezierPath]; [mouthPath moveToPoint:CGPointMake(arcCenterX-60, arcCenterY 25)]; [mouthPath addQuadCurveToPoint:CGPointMake(arcCenterX 60, arcCenterY 25) controlPoint:CGPointMake(arcCenterX, arcCenterY 90)]; [self setLayer:mouthLayer path:mouthPath]; CAShapeLayer *mouthLayer1 = [CAShapeLayer layer]; UIBezierPath *mouthPath1 = [UIBezierPath bezierPath]; [mouthPath1 moveToPoint:CGPointMake(arcCenterX, arcCenterY 10)]; [mouthPath1 addLineToPoint:CGPointMake(arcCenterX, arcCenterY 55)]; [self setLayer:mouthLayer1 path:mouthPath1]; //胡须 [self addBeardFromPoint:CGPointMake(arcCenterX-58, arcCenterY-5) toPoint:CGPointMake(arcCenterX-15, arcCenterY 10) ]; [self addBeardFromPoint:CGPointMake(arcCenterX-68, arcCenterY 15) toPoint:CGPointMake(arcCenterX-15, arcCenterY 20) ]; [self addBeardFromPoint:CGPointMake(arcCenterX-61, arcCenterY 45) toPoint:CGPointMake(arcCenterX-15, arcCenterY 30) ]; [self addBeardFromPoint:CGPointMake(arcCenterX 58, arcCenterY-5) toPoint:CGPointMake(arcCenterX 15, arcCenterY 10) ]; [self addBeardFromPoint:CGPointMake(arcCenterX 68, arcCenterY 15) toPoint:CGPointMake(arcCenterX 15, arcCenterY 20) ]; [self addBeardFromPoint:CGPointMake(arcCenterX 61, arcCenterY 45) toPoint:CGPointMake(arcCenterX 15, arcCenterY 30) ];
5、画左手部分
//左手 CAShapeLayer *leftHandLayer = [CAShapeLayer layer]; UIBezierPath *leftHandPath = [UIBezierPath bezierPathWithArcCenter:CGPointMake(arcCenterX-95, arcCenterY 110) radius:20 startAngle:0 endAngle:2*M_PI clockwise:YES]; [self setLayer:leftHandLayer path:leftHandPath ]; //左胳膊 CGFloat distanceXToArcCenter = 80*cos(M_PI_2*4/9); CGFloat distanceYToArcCenter = 80*sin(M_PI_2*4/9); CAShapeLayer *leftArmLayer = [CAShapeLayer layer]; UIBezierPath *leftArmPath = [UIBezierPath bezierPath]; [leftArmPath moveToPoint:CGPointMake(arcCenterX-distanceXToArcCenter, arcCenterY distanceYToArcCenter)]; [leftArmPath addLineToPoint:CGPointMake(arcCenterX-95, arcCenterY 90)]; [leftArmPath addQuadCurveToPoint:CGPointMake(arcCenterX-75, arcCenterY 110) controlPoint:CGPointMake(arcCenterX-92, arcCenterY 107)]; [leftArmPath addLineToPoint:CGPointMake(arcCenterX-distanceXToArcCenter 1.5, arcCenterY 95)]; [self setLayer:leftArmLayer path:leftArmPath ];
6、画身体部分
//围巾 CAShapeLayer *mufflerLayer = [CAShapeLayer layer]; UIBezierPath *mufflerPath = [UIBezierPath bezierPath]; [mufflerPath moveToPoint:CGPointMake(arcCenterX-distanceXToArcCenter, arcCenterY distanceYToArcCenter)]; [mufflerPath addQuadCurveToPoint:CGPointMake(arcCenterX distanceXToArcCenter, arcCenterY distanceYToArcCenter) controlPoint:CGPointMake(arcCenterX, arcCenterY 109)]; [mufflerPath addLineToPoint:CGPointMake(arcCenterX distanceXToArcCenter 2, arcCenterY distanceYToArcCenter 7)]; [mufflerPath addQuadCurveToPoint:CGPointMake(arcCenterX-distanceXToArcCenter-4, arcCenterY distanceYToArcCenter 5) controlPoint:CGPointMake(arcCenterX, arcCenterY 115)]; [mufflerPath addLineToPoint:CGPointMake(arcCenterX-distanceXToArcCenter, arcCenterY distanceYToArcCenter)]; [self setLayer:mufflerLayer path:mufflerPath ]; //身体 CAShapeLayer *bodyLayer = [CAShapeLayer layer]; UIBezierPath *bodyPath = [UIBezierPath bezierPath]; [bodyPath moveToPoint:CGPointMake(arcCenterX-distanceXToArcCenter, arcCenterY distanceYToArcCenter 7)]; [bodyPath addQuadCurveToPoint:CGPointMake(arcCenterX-distanceXToArcCenter 5, arcCenterY 150) controlPoint:CGPointMake(arcCenterX-distanceXToArcCenter 2, arcCenterY 140)]; [bodyPath addQuadCurveToPoint:CGPointMake(arcCenterX-distanceXToArcCenter 3, arcCenterY 170) controlPoint:CGPointMake(arcCenterX-distanceXToArcCenter, arcCenterY 160)]; [bodyPath addQuadCurveToPoint:CGPointMake(arcCenterX-8, arcCenterY 170) controlPoint:CGPointMake(arcCenterX-(distanceXToArcCenter 5)/2, arcCenterY 175)]; [bodyPath addQuadCurveToPoint:CGPointMake(arcCenterX 8, arcCenterY 170) controlPoint:CGPointMake(arcCenterX, arcCenterY 155)]; [bodyPath addQuadCurveToPoint:CGPointMake(arcCenterX distanceXToArcCenter-3, arcCenterY 170) controlPoint:CGPointMake(arcCenterX (distanceXToArcCenter 5)/2, arcCenterY 175)]; [bodyPath addQuadCurveToPoint:CGPointMake(arcCenterX distanceXToArcCenter-5, arcCenterY 150) controlPoint:CGPointMake(arcCenterX distanceXToArcCenter-2, arcCenterY 160)]; [bodyPath addQuadCurveToPoint:CGPointMake(arcCenterX distanceXToArcCenter, arcCenterY distanceYToArcCenter 8) controlPoint:CGPointMake(arcCenterX distanceXToArcCenter-2, arcCenterY 140)]; [bodyPath addQuadCurveToPoint:CGPointMake(arcCenterX-distanceXToArcCenter, arcCenterY distanceYToArcCenter 7) controlPoint:CGPointMake(arcCenterX, arcCenterY 115)]; [self setLayer:bodyLayer path:bodyPath ]; //左脚 CAShapeLayer *leftFootLayer = [CAShapeLayer layer]; UIBezierPath *leftFootPath = [UIBezierPath bezierPath]; [leftFootPath moveToPoint:CGPointMake(arcCenterX-distanceXToArcCenter 3, arcCenterY 170)]; [leftFootPath addQuadCurveToPoint:CGPointMake(arcCenterX-distanceXToArcCenter 3, arcCenterY 195) controlPoint:CGPointMake(arcCenterX-distanceXToArcCenter-20, arcCenterY 185)]; [leftFootPath addQuadCurveToPoint:CGPointMake(arcCenterX-13, arcCenterY 195) controlPoint:CGPointMake(arcCenterX-(distanceXToArcCenter 10)/2, arcCenterY 200)]; [leftFootPath addQuadCurveToPoint:CGPointMake(arcCenterX-10, arcCenterY 170) controlPoint:CGPointMake(arcCenterX 8, arcCenterY 187)]; [self setLayer:leftFootLayer path:leftFootPath ]; //右脚 CAShapeLayer *rightFootLayer = [CAShapeLayer layer]; UIBezierPath *rightFootPath = [UIBezierPath bezierPath]; [rightFootPath moveToPoint:CGPointMake(arcCenterX 10, arcCenterY 170)]; [rightFootPath addQuadCurveToPoint:CGPointMake(arcCenterX 15, arcCenterY 195) controlPoint:CGPointMake(arcCenterX-12, arcCenterY 185)]; [rightFootPath addQuadCurveToPoint:CGPointMake(arcCenterX distanceXToArcCenter-5, arcCenterY 195) controlPoint:CGPointMake(arcCenterX (distanceXToArcCenter 20)/2, arcCenterY 200)]; [rightFootPath addQuadCurveToPoint:CGPointMake(arcCenterX distanceXToArcCenter-3, arcCenterY 170) controlPoint:CGPointMake(arcCenterX distanceXToArcCenter 18, arcCenterY 185)]; [self setLayer:rightFootLayer path:rightFootPath]; //肚子 CAShapeLayer *bellyLayer = [CAShapeLayer layer]; UIBezierPath *bellyPath = [UIBezierPath bezierPath]; [bellyPath moveToPoint:CGPointMake(arcCenterX-30, arcCenterY 80)]; [bellyPath addCurveToPoint:CGPointMake(arcCenterX-30, arcCenterY 150) controlPoint1:CGPointMake(arcCenterX-65, arcCenterY 95) controlPoint2:CGPointMake(arcCenterX-60, arcCenterY 140)]; [bellyPath addQuadCurveToPoint:CGPointMake(arcCenterX 30, arcCenterY 150) controlPoint:CGPointMake(arcCenterX, arcCenterY 160)]; [bellyPath addCurveToPoint:CGPointMake(arcCenterX 30, arcCenterY 80) controlPoint1:CGPointMake(arcCenterX 60, arcCenterY 140) controlPoint2:CGPointMake(arcCenterX 65, arcCenterY 95)]; [bellyPath addQuadCurveToPoint:CGPointMake(arcCenterX-30, arcCenterY 80) controlPoint:CGPointMake(arcCenterX, arcCenterY 92)]; [self setLayer:bellyLayer path:bellyPath ]; //铃铛 CAShapeLayer *bellLayer = [CAShapeLayer layer]; UIBezierPath *bellPath = [UIBezierPath bezierPathWithArcCenter:CGPointMake(arcCenterX, arcCenterY 97) radius:15 startAngle:0 endAngle:2*M_PI clockwise:YES]; [self setLayer:bellLayer path:bellPath ]; //铃铛上的线 CAShapeLayer *bellLineLayer = [CAShapeLayer layer]; UIBezierPath *BellLinePath = [UIBezierPath bezierPath]; [BellLinePath moveToPoint:CGPointMake(arcCenterX-(sqrt(pow(15.0, 2)-pow(5.0, 2))), arcCenterY 92)]; [BellLinePath addLineToPoint:CGPointMake(arcCenterX (sqrt(pow(15.0, 2)-pow(5.0, 2))), arcCenterY 92)]; [BellLinePath moveToPoint:CGPointMake(arcCenterX (sqrt(pow(15.0, 2)-pow(2.0, 2))), arcCenterY 95)]; [BellLinePath addLineToPoint:CGPointMake(arcCenterX-(sqrt(pow(15.0, 2)-pow(2.0, 2))), arcCenterY 95)]; [self setLayer:bellLineLayer path:BellLinePath ]; //铃铛上的小圆点 CAShapeLayer *bellCirLayer = [CAShapeLayer layer]; UIBezierPath *bellCirPath = [UIBezierPath bezierPathWithArcCenter:CGPointMake(arcCenterX, arcCenterY 102) radius:2.5 startAngle:0 endAngle:2*M_PI clockwise:YES]; [bellCirPath moveToPoint:CGPointMake(arcCenterX, arcCenterY 104.5)]; [bellCirPath addLineToPoint:CGPointMake(arcCenterX, arcCenterY 112)]; [self setLayer:bellCirLayer path:bellCirPath ]; //口袋 CAShapeLayer *bagLayer = [CAShapeLayer layer]; UIBezierPath *bagPath = [UIBezierPath bezierPath]; [bagPath moveToPoint:CGPointMake(arcCenterX-40, arcCenterY 112)]; [bagPath addQuadCurveToPoint:CGPointMake(arcCenterX 40, arcCenterY 112) controlPoint:CGPointMake(arcCenterX, arcCenterY 120)]; [bagPath addCurveToPoint:CGPointMake(arcCenterX-40, arcCenterY 112) controlPoint1:CGPointMake(arcCenterX 28, arcCenterY 160) controlPoint2:CGPointMake(arcCenterX-28, arcCenterY 160)]; [self setLayer:bagLayer path:bagPath ];
7、画右手部分
//右手 CAShapeLayer *rightHandLayer = [CAShapeLayer layer]; UIBezierPath *rightHandPath = [UIBezierPath bezierPathWithArcCenter:CGPointMake(arcCenterX 85*cos(27/180.0*M_PI), arcCenterY-85*sin(27/180.0*M_PI)) radius:20 startAngle:0 endAngle:2*M_PI clockwise:YES]; [self setLayer:rightHandLayer path:rightHandPath ]; //右胳膊 CAShapeLayer *rightArmLayer = [CAShapeLayer layer]; UIBezierPath *rightArmPath = [UIBezierPath bezierPath]; [rightArmPath moveToPoint:CGPointMake(arcCenterX 80*cos(13/180.0*M_PI), arcCenterY-80*sin(13/180.0*M_PI))]; [rightArmPath addQuadCurveToPoint:CGPointMake(arcCenterX distanceXToArcCenter, arcCenterY distanceYToArcCenter) controlPoint:CGPointMake(arcCenterX 80*cos(13/180.0*M_PI) 9, arcCenterY 20)]; [rightArmPath addLineToPoint:CGPointMake(arcCenterX distanceXToArcCenter, arcCenterY distanceYToArcCenter 25)]; [rightArmPath addQuadCurveToPoint:CGPointMake(arcCenterX 93*cos(15/180.0*M_PI), arcCenterY-93*sin(15/180.0*M_PI)) controlPoint:CGPointMake(arcCenterX 90*cos(13/180.0*M_PI) 15, arcCenterY 25)]; [rightArmPath addQuadCurveToPoint:CGPointMake(arcCenterX 80*cos(13/180.0*M_PI), arcCenterY-80*sin(13/180.0*M_PI)) controlPoint:CGPointMake(arcCenterX 80*cos(13/180.0*M_PI) 5, arcCenterY-93*sin(15/180.0*M_PI) 5)]; [self setLayer:rightArmLayer path:rightArmPath]; UILabel *label = [[UILabel alloc] initWithFrame:CGRectMake(self.view.frame.size.width/2 90, 120, 70, 30)]; label.textAlignment = NSTextAlignmentCenter; label.textColor = [UIColor colorWithRed:21/255.0 green:159/255.0 blue:237/255.0 alpha:1]; label.text = @"Hello"; label.font = [UIFont fontWithName:@"Chalkduster" size:20]; [self.view addSubview:label]; CABasicAnimation *animation = [CABasicAnimation animationWithKeyPath:@"transform.scale"]; animation.fromValue = @(0); animation.toValue = @(1); animation.duration = 0.5f; [label.layer addAnimation:animation forKey:nil];
8、给各个部位上颜色
//上色 faceLayer.fillColor = [UIColor whiteColor].CGColor; leftEyeLayer.fillColor = [UIColor whiteColor].CGColor; rightEyeLayer.fillColor = [UIColor whiteColor].CGColor; leftEyeBallLayer.fillColor = [UIColor blackColor].CGColor; rightEyeBallLayer.fillColor = [UIColor blackColor].CGColor; noseLayer.fillColor = [UIColor redColor].CGColor; noseHaloLayer.fillColor = [UIColor whiteColor].CGColor; headLayer.fillColor = [UIColor colorWithRed:21/255.0 green:159/255.0 blue:237/255.0 alpha:1].CGColor; leftArmLayer.fillColor = [UIColor colorWithRed:21/255.0 green:159/255.0 blue:237/255.0 alpha:1].CGColor; leftHandLayer.fillColor = [UIColor whiteColor].CGColor; mufflerLayer.fillColor = [UIColor redColor].CGColor; bellyLayer.fillColor = [UIColor whiteColor].CGColor; bellLayer.fillColor = [UIColor yellowColor].CGColor; bodyLayer.fillColor = [UIColor colorWithRed:21/255.0 green:159/255.0 blue:237/255.0 alpha:1].CGColor; rightHandLayer .fillColor=[UIColor whiteColor].CGColor ; rightArmLayer .fillColor=[UIColor colorWithRed:21/255.0 green:159/255.0 blue:237/255.0 alpha:1] .CGColor;
这样，一个简单的哆啦A梦就实现了。
文中只展示了重要部分的代码，如果有需要，可以看完整的demo，同时demo里面也展示了UIBezierPath和CAShapeLayer基本的画图方法。
demo地址
