在java后台中生成验证码的ImageIO传到前端页面显示，同时把验证码的value值传入session 中用于与用户输入的验证码进行匹配，在用户验证中使用ajax技术，在不刷新页面的同时进行验证码验证。

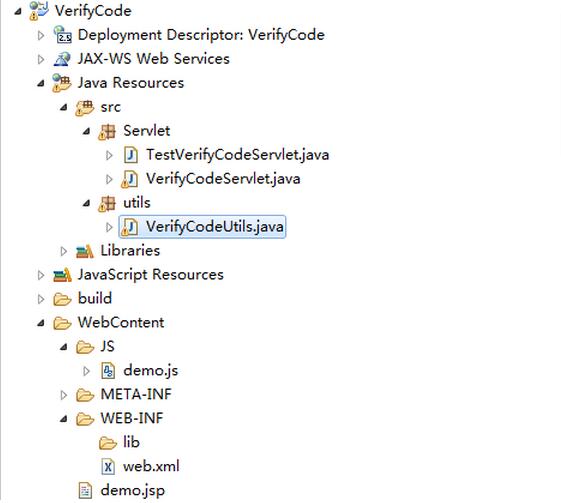

程序结构图：
VerifyCodeUtils程序主要内容为通过java生成验证码的图片，以及验证码的value值，程序如下：
package utils;
import java.awt.Color;
import java.awt.Font;
import java.awt.Graphics2D;
import java.awt.image.BufferedImage;
import java.util.HashMap;
import java.util.Map;
import java.util.Random;
public class VerifyCodeUtils {
private static BufferedImage image = null;
private static Random random = new Random();
//在自己定义的一些数中，生成4位随机数
public static String getVerifyCode() {
String str = "";
char[] code = new char[]{'A','B','C','D','E','F','G','H','I','J','K','L','M','N','P','Q','R','S','T','U',
'V','W','X','Y','Z','a','b','c','d','e','f','g','h','i','j','k','m','n','p','q','r','s','t',
'u','v','w','x','y','z','2','3','4','5','6','7','8','9'};
Random random = new Random();
for(int i = 0; i < 4; i ) {
str = String.valueOf(code[random.nextInt(code.length)]);
}
return str;
}
//生成验证码图像
public static Map getVerifyCode(int width, int heigth) {
VerifyCodeUtils.image = new BufferedImage(width, heigth, BufferedImage.TYPE_INT_RGB);
Graphics2D g = (Graphics2D) VerifyCodeUtils.image.getGraphics();
String verifyCode = getVerifyCode();
Map map = new HashMap();
map.put("verifyCode", verifyCode);
//将图像填充为白色
g.setColor(Color.WHITE);
g.fillRect(0, 0, width, heigth);
//设置字体
g.setFont(new Font("宋体", Font.BOLD Font.ITALIC, heigth-10));
//画边框。
g.setColor(VerifyCodeUtils.getColor());
g.drawRect(0, 0, width, heigth);
//随机产生干扰线，使图象中的认证码不易被其它程序探测到
g.setColor(Color.BLACK);
for (int i = 0; i < 50; i ) {
int x = VerifyCodeUtils.random.nextInt(width);
int y = VerifyCodeUtils.random.nextInt(heigth);
int xl = VerifyCodeUtils.random.nextInt(5);
int yl = VerifyCodeUtils.random.nextInt(5);
g.setColor(getColor());
g.drawLine(x, y, x xl, y yl);
}
char c;
for(int i = 0; i < 4; i ) {
c = verifyCode.charAt(i);
g.drawString(c "", i*20 40, heigth-10);
}
map.put("image", VerifyCodeUtils.image);
return map;
}
//随机化颜色
public static Color getColor() {
int red = 0, green = 0, blue = 0;
// 产生随机的颜色分量来构造颜色值，这样输出的每位数字的颜色值都将不同。
red = VerifyCodeUtils.random.nextInt(255);
green = VerifyCodeUtils.random.nextInt(255);
blue = VerifyCodeUtils.random.nextInt(255);
return new Color(red,green,blue);
}
}
VerifyCodeServlet把VerifyCodeUtils生成的验证码图片通过io流传入前端显示，代码如下：
package Servlet;
import java.awt.image.BufferedImage;
import java.io.IOException;
import java.util.Map;
import javax.imageio.ImageIO;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import utils.VerifyCodeUtils;
/**
* Servlet implementation class VerifyCodeServlet
*/
@WebServlet("/")
public class VerifyCodeServlet extends HttpServlet {
private static final long serialVersionUID = 1L;
/**
* @see HttpServlet#HttpServlet()
*/
public VerifyCodeServlet() {
super();
// TODO Auto-generated constructor stub
}
/**
* @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)
*/
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
response.setHeader("Expires", "-1");
response.setHeader("Cache-Control", "no-cache");
response.setHeader("Pragma", "no-cache");
response.setHeader("Content-type", "image/jpeg");
Map map = VerifyCodeUtils.getVerifyCode(223, 50);
//把verifyCode的数值传入session中用于验证用户输入的验证码是否正确
request.getSession().setAttribute("verifyCode", map.get("verifyCode").toString().toUpperCase());
//通过IO流传入前端显示
ImageIO.write((BufferedImage) map.get("image"), "jpg", response.getOutputStream());
}
/**
* @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
*/
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
// TODO Auto-generated method stub
doGet(request, response);
}
}
页面jsp代码如下：
<%@ page language="java" contentType="text/html; charset=utf-8"
pageEncoding="utf-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<base id="base" href="${pageContext.request.contextPath}">
<title>验证码测试界面</title>
<style>
div{float:left;}
input{width:223px;height:31px;margin-right:20px;}
img{width:223px;height:35px;}
p{margin:10px;}
</style>
</head>
<body>
<script src="${pageContext.request.contextPath}/JS/demo.js"></script>
<div>
<input type="text" name="verifyCode" id="verifyCode" placeholder="验证码" onblur="check_verifyCode()">
</div>
<div>
<img src="${pageContext.request.contextPath}/servlet/VerifyCodeServlet" style="width: 100%" onclick="this.src=this.src '?' Math.random()"/>
</div>
<div>
<p id = "tip"></p>
</div>
</body>
</html>
js 实现ajax代码如下：
/**
*
*/
function check_verifyCode(){
var XMLHttpReqVerifyCode = null;
var url =document.getElementById("base").href "/servlet/TestVerifyCodeServlet";
var verifyCode = document.getElementById("verifyCode").value;
var tip = document.getElementById("tip");
var errorTip = "输入的验证码不正确";
var successTip = "输入的验证码正确";
tip.innerHTML=errorTip;
if(verifyCode==null || verifyCode==""){
tip.innerHTML=errorTip;
tip.style.color = "red";
}else{
if(window.XMLHttpRequest) {
//DOM2浏览器
XMLHttpReqVerifyCode = new XMLHttpRequest();
} else if(window.ActiveXObject) {
//使用json语法创建数组
var MSXML = ['MSXML2.XMLHTTP.5.0', 'MSXML2.XMLHTTP.4.0', 'MSXML2.XMLHTTP.3.0', 'MSXML2.XMLHTTP', 'Microsoft.XMLHTTP'];
for(var i = 0; i < MSXML.length; i ) {
try{
XMLHttpReqVerifyCode = new ActiveXObject(MSXML[i]);
} catch(e) {
}
}
}
XMLHttpReqVerifyCode.open("POST",url, true);
XMLHttpReqVerifyCode.setRequestHeader("Content-Type", "application/x-www-form-urlencoded");
XMLHttpReqVerifyCode.onreadystatechange = function testVerifyCodeServletResponse(){
if(XMLHttpReqVerifyCode.readyState == 4 && (XMLHttpReqVerifyCode.status == 200 || XMLHttpReqVerifyCode.status == 304)) {
if(XMLHttpReqVerifyCode.responseText == 1){
tip.innerHTML = successTip;
tip.style.color = "green";
}else if(XMLHttpReqVerifyCode.responseText == 0){
tip.innerHTML = errorTip;
tip.style.color = "red";
}
}
}
XMLHttpReqVerifyCode.send("code=" verifyCode);
}
//ajax前后台交互
function createXMLHttpRequest(XMLHttpReq) {
if(window.XMLHttpRequest) {
//DOM2浏览器
XMLHttpReq = new XMLHttpRequest();
} else if(window.ActiveXObject) {
//使用json语法创建数组
var MSXML = ['MSXML2.XMLHTTP.5.0', 'MSXML2.XMLHTTP.4.0', 'MSXML2.XMLHTTP.3.0', 'MSXML2.XMLHTTP', 'Microsoft.XMLHTTP'];
for(var i = 0; i < MSXML.length; i ) {
try{
XMLHttpReq = new ActiveXObject(MSXML[i]);
} catch(e) {
}
}
return XMLHttpReq;
}
}
}
TestVerifyCodeServlet与js交互代码为：
package Servlet;
import java.io.IOException;
import java.io.PrintWriter;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
/**
* Servlet implementation class TestVerifyCodeServlet
*/
@WebServlet("/TestVerifyCodeServlet")
public class TestVerifyCodeServlet extends HttpServlet {
private static final long serialVersionUID = 1L;
/**
* @see HttpServlet#HttpServlet()
*/
public TestVerifyCodeServlet() {
super();
// TODO Auto-generated constructor stub
}
/**
* @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)
*/
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
// TODO Auto-generated method stub
String codeTrue = (String) request.getSession().getAttribute("verifyCode");
String codeInput = request.getParameter("code");
System.out.println(codeInput);
response.setContentType("text/html;charset=utf-8");
PrintWriter out = response.getWriter();//打印流
if(codeInput!=null){
if(codeInput.toUpperCase().equals(codeTrue)){
out.println("1");
}else{
out.println("0");
}
}
}
/**
* @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
*/
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
// TODO Auto-generated method stub
doGet(request, response);
}
}
xml代码为
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" version="2.5"> <display-name></display-name> <welcome-file-list> <welcome-file>demo.jsp</welcome-file> </welcome-file-list> <servlet> <servlet-name>VerifyCodeServlet</servlet-name> <servlet-class>Servlet.VerifyCodeServlet</servlet-class> </servlet> <servlet-mapping> <servlet-name>VerifyCodeServlet</servlet-name> <url-pattern>/servlet/VerifyCodeServlet</url-pattern> </servlet-mapping> <servlet> <servlet-name>TestVerifyCodeServlet</servlet-name> <servlet-class>Servlet.TestVerifyCodeServlet</servlet-class> </servlet> <servlet-mapping> <servlet-name>TestVerifyCodeServlet</servlet-name> <url-pattern>/servlet/TestVerifyCodeServlet</url-pattern> </servlet-mapping> </web-app>
结果显示：
