RecyclerView更加优化的复用机制和方便实现UI效果，几乎替代Listview和GridView的使用。但是分割线的实现，需要自己继承ItemDecoration来绘制。

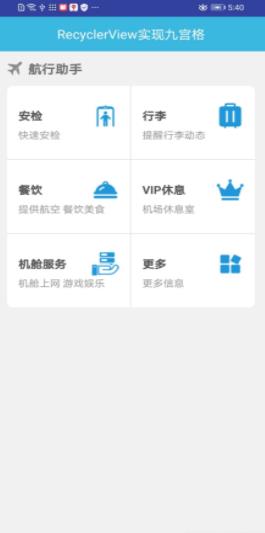

效果图
item的布局文件
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:gravity="center" android:layout_width="match_parent" android:layout_height="wrap_content"> <LinearLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:orientation="horizontal" android:gravity="center_vertical" android:layout_marginTop="25dp" android:layout_marginLeft="15dp" android:layout_marginRight="15dp"> <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_weight="1" android:text="餐饮" android:id="@ id/txt_title" android:textSize="16sp" android:textStyle="bold" android:textColor="#555555"/> <ImageView android:layout_width="36dp" android:layout_height="36dp" android:id="@ id/img_title" android:src="@mipmap/luggage_blue"/> </LinearLayout> <LinearLayout android:layout_width="match_parent" android:layout_height="20dp" android:orientation="vertical" android:layout_marginBottom="25dp" android:layout_marginLeft="15dp" android:layout_marginRight="15dp"> <TextView android:layout_width="match_parent" android:layout_height="match_parent" android:text="提供航空 餐饮美食" android:id="@ id/txt_info" android:textSize="14sp" android:textColor="#999999"/> </LinearLayout> </LinearLayout>
activity_main.xml布局文件
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:orientation="vertical" android:layout_width="match_parent" android:layout_height="match_parent" android:background="#f1f1f1" tools:context=".MainActivity"> <TextView android:layout_width="match_parent" android:layout_height="50dp" android:textColor="#ffffff" android:textSize="18sp" android:gravity="center" android:text="RecyclerView实现九宫格" android:background="#30B8E3"/> <ScrollView android:layout_width="match_parent" android:layout_height="match_parent"> <LinearLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:orientation="vertical"> <LinearLayout android:layout_width="match_parent" android:layout_height="50dp" android:gravity="center_vertical" android:layout_marginLeft="15dp" android:layout_marginRight="15dp" android:orientation="horizontal"> <ImageView android:layout_width="20dp" android:layout_height="20dp" android:src="@mipmap/air_gray" android:layout_marginRight="8dp"/> <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:text="航行助手" android:textStyle="bold" android:textSize="18sp"/> </LinearLayout> <android.support.v7.widget.RecyclerView android:id="@ id/main_recycleview" android:divider="#00000000" android:layout_width="match_parent" android:layout_height="wrap_content" android:background="@drawable/shape_bg" android:layout_marginLeft="15dp" android:layout_marginRight="15dp" android:layout_marginBottom="15dp"> </android.support.v7.widget.RecyclerView> </LinearLayout> </ScrollView> </LinearLayout>
MainActivity.java代码
package com.davis.recyclerviewdemo;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.GridLayoutManager;
import android.support.v7.widget.RecyclerView;
import com.davis.recyclerviewdemo.adapter.CommonDecoration;
import com.davis.recyclerviewdemo.adapter.RecyclerViewAdapter;
import com.davis.recyclerviewdemo.bean.MenuBean;
import java.util.ArrayList;
import java.util.List;
public class MainActivity extends AppCompatActivity {
private RecyclerView recyclerView;
private RecyclerViewAdapter adapter;
private List<MenuBean> listDatas = new ArrayList<MenuBean>();
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
init();
}
private void init(){
recyclerView = (RecyclerView)findViewById(R.id.main_recycleview);
loadMenuData();
recyclerView.setLayoutManager(new GridLayoutManager(this, 2));
recyclerView.addItemDecoration(new CommonDecoration(this));
adapter = new RecyclerViewAdapter(this, listDatas);
recyclerView.setAdapter(adapter);
}
private void loadMenuData(){
listDatas.add(new MenuBean("安检", "快速安检", R.mipmap.check_blue));
listDatas.add(new MenuBean("行李", "提醒行李动态", R.mipmap.luggage_blue));
listDatas.add(new MenuBean("餐饮", "提供航空 餐饮美食", R.mipmap.food_blue));
listDatas.add(new MenuBean("VIP休息", "机场休息室", R.mipmap.vip_blue));
listDatas.add(new MenuBean("机舱服务", "机舱上网 游戏娱乐", R.mipmap.service_blue));
listDatas.add(new MenuBean("更多", "更多信息", R.mipmap.more_blue));
}
}其中GridLayoutManager用来设置显示列数，CommonDecoration用来绘制分隔线。
CommonDecoration.java代码
package com.davis.recyclerviewdemo.adapter;
import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Rect;
import android.graphics.drawable.Drawable;
import android.support.v7.widget.GridLayoutManager;
import android.support.v7.widget.RecyclerView;
import android.support.v7.widget.StaggeredGridLayoutManager;
import android.view.View;
/**
* Created by Administrator on 2019/4/14.
*/
public class CommonDecoration extends RecyclerView.ItemDecoration {
private static final int[] ATTRS = new int[]{android.R.attr.listDivider};
private Drawable mDivider;
public CommonDecoration(Context context) {
final TypedArray a = context.obtainStyledAttributes(ATTRS);
mDivider = a.getDrawable(0);
a.recycle();
}
@Override
public void onDraw(Canvas c, RecyclerView parent, RecyclerView.State state) {
drawHorizontal(c, parent);
drawVertical(c, parent);
}
private int getSpanCount(RecyclerView parent) {
// 列数
int spanCount = -1;
RecyclerView.LayoutManager layoutManager = parent.getLayoutManager();
if (layoutManager instanceof GridLayoutManager) {
spanCount = ((GridLayoutManager) layoutManager).getSpanCount();
} else if (layoutManager instanceof StaggeredGridLayoutManager) {
spanCount = ((StaggeredGridLayoutManager) layoutManager)
.getSpanCount();
}
return spanCount;
}
public void drawHorizontal(Canvas c, RecyclerView parent) {
int childCount = parent.getChildCount();
for (int i = 0; i < childCount; i ) {
final View child = parent.getChildAt(i);
final RecyclerView.LayoutParams params = (RecyclerView.LayoutParams) child
.getLayoutParams();
final int left = child.getLeft() - params.leftMargin;
final int right = child.getRight() params.rightMargin
mDivider.getIntrinsicWidth();
final int top = child.getBottom() params.bottomMargin;
final int bottom = top mDivider.getIntrinsicHeight();
mDivider.setBounds(left, top, right, bottom);
mDivider.draw(c);
}
}
public void drawVertical(Canvas c, RecyclerView parent) {
final int childCount = parent.getChildCount();
for (int i = 0; i < childCount; i ) {
final View child = parent.getChildAt(i);
final RecyclerView.LayoutParams params = (RecyclerView.LayoutParams) child
.getLayoutParams();
final int top = child.getTop() - params.topMargin;
final int bottom = child.getBottom() params.bottomMargin;
final int left = child.getRight() params.rightMargin;
final int right = left mDivider.getIntrinsicWidth();
mDivider.setBounds(left, top, right, bottom);
mDivider.draw(c);
}
}
private boolean isLastColum(RecyclerView parent, int pos, int spanCount,
int childCount) {
RecyclerView.LayoutManager layoutManager = parent.getLayoutManager();
if (layoutManager instanceof GridLayoutManager) {
// 如果是最后一列，则不需要绘制右边
if ((pos 1) % spanCount == 0) {
return true;
}
} else if (layoutManager instanceof StaggeredGridLayoutManager) {
int orientation = ((StaggeredGridLayoutManager) layoutManager)
.getOrientation();
if (orientation == StaggeredGridLayoutManager.VERTICAL) {
// 如果是最后一列，则不需要绘制右边
if ((pos 1) % spanCount == 0) {
return true;
}
} else {
childCount = childCount - childCount % spanCount;
if (pos >= childCount) {// 如果是最后一列，则不需要绘制右边
return true;
}
}
}
return false;
}
private boolean isLastRaw(RecyclerView parent, int pos, int spanCount, int childCount) {
RecyclerView.LayoutManager layoutManager = parent.getLayoutManager();
if (layoutManager instanceof GridLayoutManager) {
int last = childCount % spanCount;
if (last == 0) {
last = spanCount;
}
childCount = childCount - last;
if (pos >= childCount) {// 如果是最后一行，则不需要绘制底部
return true;
}
} else if (layoutManager instanceof StaggeredGridLayoutManager) {
int orientation = ((StaggeredGridLayoutManager) layoutManager)
.getOrientation();
// StaggeredGridLayoutManager 且纵向滚动
if (orientation == StaggeredGridLayoutManager.VERTICAL) {
int last = childCount % spanCount;
if (last == 0) {
last = spanCount;
}
childCount = childCount - last;
// 如果是最后一行，则不需要绘制底部
if (pos >= childCount) {
return true;
}
} else {// StaggeredGridLayoutManager 且横向滚动
// 如果是最后一行，则不需要绘制底部
if ((pos 1) % spanCount == 0) {
return true;
}
}
}
return false;
}
@Override
public void getItemOffsets(Rect outRect, int itemPosition,
RecyclerView parent) {
int spanCount = getSpanCount(parent);
int childCount = parent.getAdapter().getItemCount();
if (isLastColum(parent, itemPosition, spanCount, childCount)) {// 如果是最后一列，则不需要绘制右边
if (itemPosition == (childCount - 1)) {
outRect.set(0, 0, 0, 0);
} else {
outRect.set(0, 0, 0, mDivider.getIntrinsicHeight());
}
} else if (isLastRaw(parent, itemPosition, spanCount, childCount)) {// 如果是最后一行，则不需要绘制底部
outRect.set(0, 0, mDivider.getIntrinsicWidth(), 0);
} else {
outRect.set(0, 0, mDivider.getIntrinsicWidth(),
mDivider.getIntrinsicHeight());
}
}
}以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持Devmax。
