项目要求
1.初次打开程序时右上角标题栏显示“无连接”，点击旁边的按钮选择“我的好友”，进入配对界面；
2.选择好友之后，返回主界面，标题栏会显示已连接的手机型号；
3.两部手机间可通过蓝牙聊天

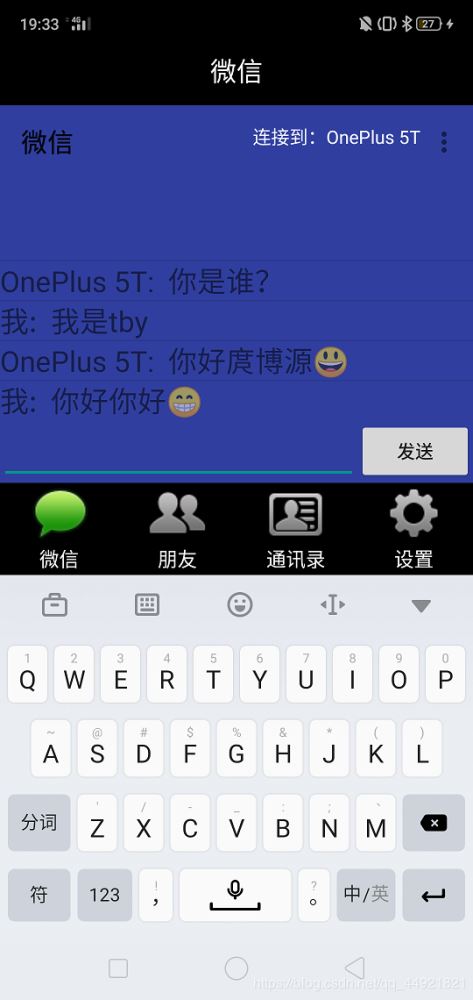

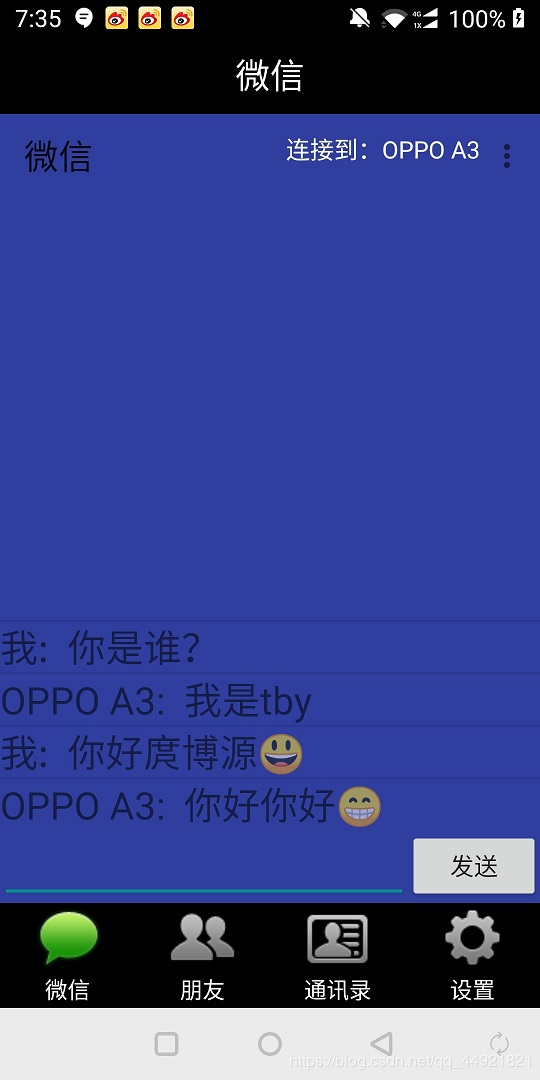

效果展示

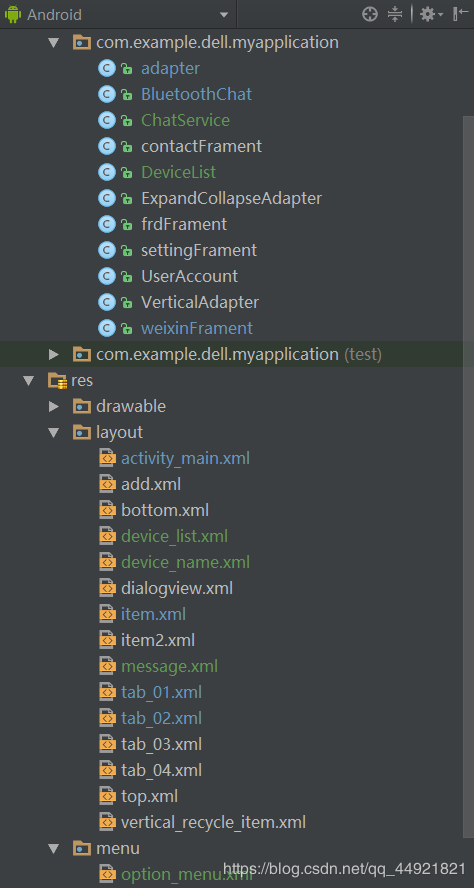

项目结构
主要代码
1.在清单文件中注册权限
<uses-permission android:name="android.permission.BLUETOOTH_ADMIN" /> <uses-permission android:name="android.permission.BLUETOOTH" />
2.在文件res / values / strings.xml里，添加程序运行过程中的状态描述文本及配色代码等
<?xml version="1.0" encoding="utf-8"?> <resources> <string name="app_name">蓝牙Demo</string> <string name="send">发送</string> <string name="not_connected">你没有链接一个设备</string> <string name="bt_not_enabled_leaving">蓝牙不可用，离开聊天室</string> <string name="title_connecting">链接中...</string> <string name="title_connected_to">连接到：</string> <string name="title_not_connected">无链接</string> <string name="scanning">蓝牙设备搜索中...</string> <string name="select_device">选择一个好友链接</string> <string name="none_paired">没有配对好友</string> <string name="none_found">附近没有发现好友</string> <string name="title_paired_devices">已配对好友</string> <string name="title_other_devices">其它可连接好友</string> <string name="button_scan">搜索好友</string> <string name="connect">我的好友</string> <string name="discoverable">设置在线</string> <string name="back">退出</string> <string name="startVideo">开始聊天</string> <string name="stopVideo">结束聊天</string> </resources>
用于蓝牙会话的服务组件ChatService.java中有三个内部类：AcceptThread（接受新连接）、ConnectThread（发出连接）和ConnectedThread （已连接）。
// 创建监听线程，准备接受新连接。使用阻塞方式，调用 BluetoothServerSocket.accept()
private class AcceptThread extends Thread {
private final BluetoothServerSocket mmServerSocket;
public AcceptThread() {
BluetoothServerSocket tmp = null;
try {
//使用射频端口（RF comm）监听
tmp = mAdapter.listenUsingRfcommWithServiceRecord(NAME, MY_UUID);
} catch (IOException e) {
}
mmServerSocket = tmp;
}
@Override
public void run() {
setName("AcceptThread");
BluetoothSocket socket = null;
while (mState != STATE_CONNECTED) {
try {
socket = mmServerSocket.accept();
} catch (IOException e) {
break;
}
if (socket != null) {
synchronized (ChatService.this) {
switch (mState) {
case STATE_LISTEN:
case STATE_CONNECTING:
connected(socket, socket.getRemoteDevice());
break;
case STATE_NONE:
case STATE_CONNECTED:
try {
socket.close();
} catch (IOException e) {
e.printStackTrace();
}
break;
}
}
}
}
}
public void cancel() {
try {
mmServerSocket.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
/*
连接线程，专门用来对外发出连接对方蓝牙的请求和处理流程。
构造函数里通过 BluetoothDevice.createRfcommSocketToServiceRecord() ，
从待连接的 device 产生 BluetoothSocket. 然后在 run 方法中 connect ，
成功后调用 BluetoothChatSevice 的 connected() 方法。定义 cancel() 在关闭线程时能够关闭相关socket 。
*/
private class ConnectThread extends Thread {
private final BluetoothSocket mmSocket;
private final BluetoothDevice mmDevice;
public ConnectThread(BluetoothDevice device) {
mmDevice = device;
BluetoothSocket tmp = null;
try {
tmp = device.createRfcommSocketToServiceRecord(MY_UUID);
} catch (IOException e) {
e.printStackTrace();
}
mmSocket = tmp;
}
@Override
public void run() {
setName("ConnectThread");
mAdapter.cancelDiscovery();
try {
mmSocket.connect();
} catch (IOException e) {
connectionFailed();
try {
mmSocket.close();
} catch (IOException e2) {
e.printStackTrace();
}
ChatService.this.start();
return;
}
synchronized (ChatService.this) {
mConnectThread = null;
}
connected(mmSocket, mmDevice);
}
public void cancel() {
try {
mmSocket.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
/*
双方蓝牙连接后一直运行的线程；构造函数中设置输入输出流。
run()方法中使用阻塞模式的 InputStream.read()循环读取输入流，然后发送到 UI 线程中更新聊天消息。
本线程也提供了 write() 将聊天消息写入输出流传输至对方，传输成功后回写入 UI 线程。最后使用cancel()关闭连接的 socket
*/
private class ConnectedThread extends Thread {
private final BluetoothSocket mmSocket;
private final InputStream mmInStream;
private final OutputStream mmOutStream;
public ConnectedThread(BluetoothSocket socket) {
mmSocket = socket;
InputStream tmpIn = null;
OutputStream tmpOut = null;
try {
tmpIn = socket.getInputStream();
tmpOut = socket.getOutputStream();
} catch (IOException e) {
e.printStackTrace();
}
mmInStream = tmpIn;
mmOutStream = tmpOut;
}
@Override
public void run() {
byte[] buffer = new byte[1024];
int bytes;
while (true) {
try {
bytes = mmInStream.read(buffer);
mHandler.obtainMessage(weixinFragment.MESSAGE_READ, bytes, -1, buffer).sendToTarget();
} catch (IOException e) {
connectionLost();
break;
}
}
}
public void write(byte[] buffer) {
try {
mmOutStream.write(buffer);
mHandler.obtainMessage(weixinFragment.MESSAGE_WRITE, -1, -1, buffer).sendToTarget();
} catch (IOException e) {
e.printStackTrace();
}
}
public void cancel() {
try {
mmSocket.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
新建Activity组件DeviceList，实现拾取与之会话的蓝牙设备。本程序供菜单项主界面的选项菜单“我的友好”调用，用于：
（1）显示已配对的好友列表；
（2）搜索可配对的好友进行配对
（3）新选择并配对的蓝牙设备将刷新好友列表
注意：发现新的蓝牙设备并请求配对时，需要对应接受
关键技术：动态注册一个广播接收者，处理蓝牙设备扫描的结果
public class DeviceList extends Activity{
private BluetoothAdapter mBtAdapter;
private ArrayAdapter<String> mPairedDevicesArrayAdapter;
private ArrayAdapter<String> mNewDevicesArrayAdapter;
public static String EXTRA_DEVICE_ADDRESS = "device_address"; //Mac地址
//定义广播接收者，用于处理扫描蓝牙设备后的结果
private final BroadcastReceiver mReceiver = new BroadcastReceiver() {
@Override
public void onReceive(Context context, Intent intent) {
String action = intent.getAction();
if (BluetoothDevice.ACTION_FOUND.equals(action)) {
BluetoothDevice device = intent.getParcelableExtra(BluetoothDevice.EXTRA_DEVICE);
if (device.getBondState() != BluetoothDevice.BOND_BONDED) {
mNewDevicesArrayAdapter.add(device.getName() "\n" device.getAddress());
}
} else if (BluetoothAdapter.ACTION_DISCOVERY_FINISHED.equals(action)) {
if (mNewDevicesArrayAdapter.getCount() == 0) {
String noDevices = getResources().getText(R.string.none_found).toString();
mNewDevicesArrayAdapter.add(noDevices);
}
}
}
};
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.device_list);
//在被调用活动里，设置返回结果码
setResult(Activity.RESULT_CANCELED);
init(); //活动界面
}
private void init() {
Button scanButton = findViewById(R.id.button_scan);
scanButton.setOnClickListener(new OnClickListener() {
public void onClick(View v) {
Toast.makeText(DeviceList.this, R.string.scanning, Toast.LENGTH_LONG).show();
doDiscovery(); //搜索蓝牙设备
}
});
mPairedDevicesArrayAdapter = new ArrayAdapter<String>(this, R.layout.device_name);
mNewDevicesArrayAdapter = new ArrayAdapter<String>(this, R.layout.device_name);
//已配对蓝牙设备列表
ListView pairedListView =findViewById(R.id.paired_devices);
pairedListView.setAdapter(mPairedDevicesArrayAdapter);
pairedListView.setOnItemClickListener(mPaireDeviceClickListener);
//未配对蓝牙设备列表
ListView newDevicesListView = findViewById(R.id.new_devices);
newDevicesListView.setAdapter(mNewDevicesArrayAdapter);
newDevicesListView.setOnItemClickListener(mNewDeviceClickListener);
//动态注册广播接收者
IntentFilter filter = new IntentFilter(BluetoothDevice.ACTION_FOUND);
registerReceiver(mReceiver, filter);
filter = new IntentFilter(BluetoothAdapter.ACTION_DISCOVERY_FINISHED);
registerReceiver(mReceiver, filter);
mBtAdapter = BluetoothAdapter.getDefaultAdapter();
Set<BluetoothDevice> pairedDevices = mBtAdapter.getBondedDevices();
if (pairedDevices.size() > 0) {
findViewById(R.id.title_paired_devices).setVisibility(View.VISIBLE);
for (BluetoothDevice device : pairedDevices) {
mPairedDevicesArrayAdapter.add(device.getName() "\n" device.getAddress());
}
} else {
String noDevices = getResources().getText(R.string.none_paired).toString();
mPairedDevicesArrayAdapter.add(noDevices);
}
}
@Override
protected void onDestroy() {
super.onDestroy();
if (mBtAdapter != null) {
mBtAdapter.cancelDiscovery();
}
this.unregisterReceiver(mReceiver);
}
private void doDiscovery() {
findViewById(R.id.title_new_devices).setVisibility(View.VISIBLE);
if (mBtAdapter.isDiscovering()) {
mBtAdapter.cancelDiscovery();
}
mBtAdapter.startDiscovery(); //开始搜索蓝牙设备并产生广播
//startDiscovery是一个异步方法
//找到一个设备时就发送一个BluetoothDevice.ACTION_FOUND的广播
}
private OnItemClickListener mPaireDeviceClickListener = new OnItemClickListener() {
public void onItemClick(AdapterView<?> av, View v, int arg2, long arg3) {
mBtAdapter.cancelDiscovery();
String info = ((TextView) v).getText().toString();
String address = info.substring(info.length() - 17);
Intent intent = new Intent();
intent.putExtra(EXTRA_DEVICE_ADDRESS, address); //Mac地址
setResult(Activity.RESULT_OK, intent);
finish();
}
};
private OnItemClickListener mNewDeviceClickListener = new OnItemClickListener() {
public void onItemClick(AdapterView<?> av, View v, int arg2, long arg3) {
mBtAdapter.cancelDiscovery();
Toast.makeText(DeviceList.this, "请在蓝牙设置界面手动连接设备",Toast.LENGTH_SHORT).show();
Intent intent = new Intent(Settings.ACTION_BLUETOOTH_SETTINGS);
startActivityForResult(intent,1);
}
};
//回调方法：进入蓝牙配对设置界面返回后执行
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
super.onActivityResult(requestCode, resultCode, data);
init(); //刷新好友列表
}
}
蓝牙会话的主Activity组件程序fragment.java
public class weixinFrament extends Fragment {
public static final int MESSAGE_STATE_CHANGE = 1;
public static final int MESSAGE_READ = 2;
public static final int MESSAGE_WRITE = 3;
public static final int MESSAGE_DEVICE_NAME = 4;
public static final int MESSAGE_TOAST = 5;
public static final String DEVICE_NAME = "device_name";
public static final String TOAST = "toast";
private static final int REQUEST_CONNECT_DEVICE = 1; //请求连接设备
private static final int REQUEST_ENABLE_BT = 2;
private TextView mTitle;
private ListView mConversationView;
private EditText mOutEditText;
private Button mSendButton;
private String mConnectedDeviceName = null;
private ArrayAdapter<String> mConversationArrayAdapter;
private StringBuffer mOutStringBuffer;
private BluetoothAdapter mBluetoothAdapter = null;
private ChatService mChatService = null;
private View view;
public weixinFrament() {
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
view = inflater.inflate(R.layout.tab_01, container, false);
Toolbar toolbar = view.findViewById(R.id.toolbar);
setHasOptionsMenu(true);
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
if (ContextCompat.checkSelfPermission(this.getContext(), Manifest.permission.ACCESS_COARSE_LOCATION) != PackageManager.PERMISSION_GRANTED) {
ActivityCompat.requestPermissions(getActivity(), new String[]{Manifest.permission.ACCESS_COARSE_LOCATION}, 1);
}
}
//创建选项菜单
toolbar.inflateMenu(R.menu.option_menu);
//选项菜单监听
toolbar.setOnMenuItemClickListener(new MyMenuItemClickListener());
mTitle = view.findViewById(R.id.title_left_text);
mTitle.setText(R.string.app_name);
mTitle = view.findViewById(R.id.title_right_text);
// 得到本地蓝牙适配器
mBluetoothAdapter = BluetoothAdapter.getDefaultAdapter();
if (mBluetoothAdapter == null) {
Toast.makeText(view.getContext(), "蓝牙不可用", Toast.LENGTH_LONG).show();
getActivity().finish();
return view;
}
if (!mBluetoothAdapter.isEnabled()) { //若当前设备蓝牙功能未开启
Intent enableIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_ENABLE);
startActivityForResult(enableIntent, REQUEST_ENABLE_BT); //
} else {
if (mChatService == null) {
setupChat(); //创建会话
}
}
return view;
}
@Override
public void onRequestPermissionsResult(int requestCode, String[] permissions, int[] grantResults) {
super.onRequestPermissionsResult(requestCode, permissions, grantResults);
if (grantResults.length > 0) {
if (grantResults[0] != PackageManager.PERMISSION_GRANTED) {
Toast.makeText(view.getContext(), "未授权，蓝牙搜索功能将不可用！", Toast.LENGTH_SHORT).show();
}
}
}
@Override
public synchronized void onResume() { //synchronized：同步方法实现排队调用
super.onResume();
if (mChatService != null) {
if (mChatService.getState() == ChatService.STATE_NONE) {
mChatService.start();
}
}
}
private void setupChat() {
mConversationArrayAdapter = new ArrayAdapter<String>(view.getContext(), R.layout.message);
mConversationView = view.findViewById(R.id.in);
mConversationView.setAdapter(mConversationArrayAdapter);
mOutEditText = view.findViewById(R.id.edit_text_out);
mOutEditText.setOnEditorActionListener(mWriteListener);
mSendButton = view.findViewById(R.id.button_send);
mSendButton.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
TextView textview = view.findViewById(R.id.edit_text_out);
String message = textview.getText().toString();
sendMessage(message);
}
});
//创建服务对象
mChatService = new ChatService(view.getContext(), mHandler);
mOutStringBuffer = new StringBuffer("");
}
@Override
public void onDestroy() {
super.onDestroy();
if (mChatService != null)
mChatService.stop();
}
private void ensureDiscoverable() { //修改本机蓝牙设备的可见性
//打开手机蓝牙后，能被其它蓝牙设备扫描到的时间不是永久的
if (mBluetoothAdapter.getScanMode() != BluetoothAdapter.SCAN_MODE_CONNECTABLE_DISCOVERABLE) {
Intent discoverableIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_DISCOVERABLE);
//设置在300秒内可见（能被扫描）
discoverableIntent.putExtra(BluetoothAdapter.EXTRA_DISCOVERABLE_DURATION, 300);
startActivity(discoverableIntent);
Toast.makeText(view.getContext(), "已经设置本机蓝牙设备的可见性，对方可搜索了。", Toast.LENGTH_SHORT).show();
}
}
private void sendMessage(String message) {
if (mChatService.getState() != ChatService.STATE_CONNECTED) {
Toast.makeText(view.getContext(), R.string.not_connected, Toast.LENGTH_SHORT).show();
return;
}
if (message.length() > 0) {
byte[] send = message.getBytes();
mChatService.write(send);
mOutStringBuffer.setLength(0);
mOutEditText.setText(mOutStringBuffer);
}
}
private TextView.OnEditorActionListener mWriteListener = new TextView.OnEditorActionListener() {
@Override
public boolean onEditorAction(TextView view, int actionId, KeyEvent event) {
if (actionId == EditorInfo.IME_NULL && event.getAction() == KeyEvent.ACTION_UP) {
//软键盘里的回车也能发送消息
String message = view.getText().toString();
sendMessage(message);
}
return true;
}
};
//使用Handler对象在UI主线程与子线程之间传递消息
private final Handler mHandler = new Handler() { //消息处理
@Override
public void handleMessage(Message msg) {
switch (msg.what) {
case MESSAGE_STATE_CHANGE:
switch (msg.arg1) {
case ChatService.STATE_CONNECTED:
mTitle.setText(R.string.title_connected_to);
mTitle.append(mConnectedDeviceName);
mConversationArrayAdapter.clear();
break;
case ChatService.STATE_CONNECTING:
mTitle.setText(R.string.title_connecting);
break;
case ChatService.STATE_LISTEN:
case ChatService.STATE_NONE:
mTitle.setText(R.string.title_not_connected);
break;
}
break;
case MESSAGE_WRITE:
byte[] writeBuf = (byte[]) msg.obj;
String writeMessage = new String(writeBuf);
mConversationArrayAdapter.add("我: " writeMessage);
break;
case MESSAGE_READ:
byte[] readBuf = (byte[]) msg.obj;
String readMessage = new String(readBuf, 0, msg.arg1);
mConversationArrayAdapter.add(mConnectedDeviceName ": "
readMessage);
break;
case MESSAGE_DEVICE_NAME:
mConnectedDeviceName = msg.getData().getString(DEVICE_NAME);
Toast.makeText(getActivity().getApplicationContext(), "链接到 " mConnectedDeviceName, Toast.LENGTH_SHORT).show();
break;
case MESSAGE_TOAST:
Toast.makeText(getActivity().getApplicationContext(),
msg.getData().getString(TOAST), Toast.LENGTH_SHORT).show();
break;
}
}
};
//返回进入好友列表操作后的数回调方法
public void onActivityResult(int requestCode, int resultCode, Intent data) {
switch (requestCode) {
case REQUEST_CONNECT_DEVICE:
if (resultCode == Activity.RESULT_OK) {
String address = data.getExtras().getString(DeviceList.EXTRA_DEVICE_ADDRESS);
BluetoothDevice device = mBluetoothAdapter.getRemoteDevice(address);
mChatService.connect(device);
} else if (resultCode == Activity.RESULT_CANCELED) {
Toast.makeText(view.getContext(), "未选择任何好友！", Toast.LENGTH_SHORT).show();
}
break;
case REQUEST_ENABLE_BT:
if (resultCode == Activity.RESULT_OK) {
setupChat();
} else {
Toast.makeText(view.getContext(), R.string.bt_not_enabled_leaving, Toast.LENGTH_SHORT).show();
getActivity().finish();
}
}
}
//内部类，选项菜单的单击事件处理
private class MyMenuItemClickListener implements Toolbar.OnMenuItemClickListener {
@Override
public boolean onMenuItemClick(MenuItem item) {
switch (item.getItemId()) {
case R.id.scan:
//启动DeviceList这个Activity
Intent serverIntent = new Intent(weixinFrament.this.getActivity(), DeviceList.class);
startActivityForResult(serverIntent, REQUEST_CONNECT_DEVICE);
return true;
case R.id.discoverable:
ensureDiscoverable();
return true;
case R.id.back:
getActivity().finish();
System.exit(0);
return true;
}
return false;
}
}
}
项目地址
点我进入仓库
总结
到此这篇关于Android在类微信程序中实现蓝牙聊天功能的文章就介绍到这了,更多相关android 类微信程序蓝牙聊天内容请搜索Devmax以前的文章或继续浏览下面的相关文章希望大家以后多多支持Devmax！
