前言

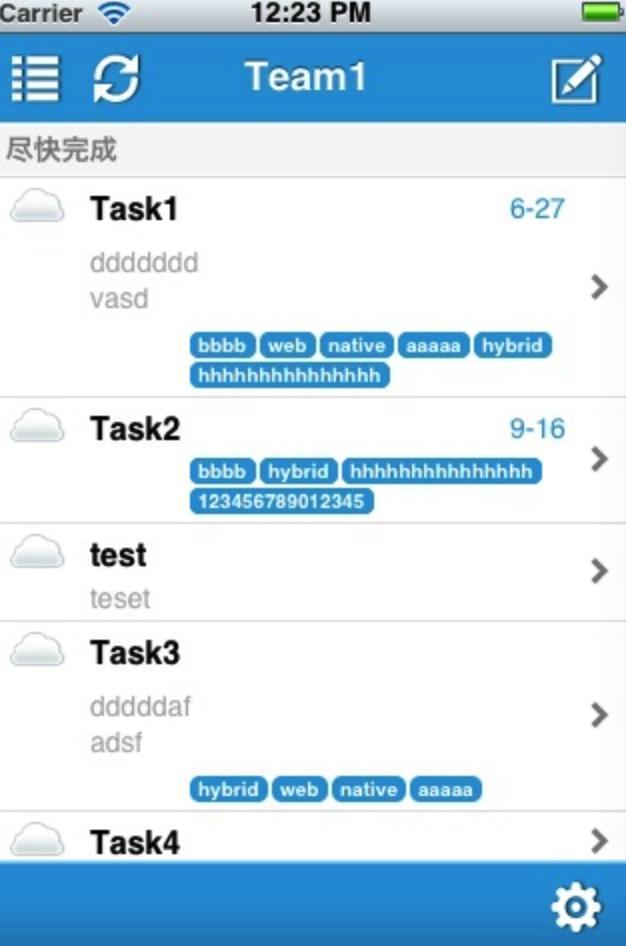

我相信很多人在开发者都有这样的需求,标签展示(如下图)


很多人都可以自己实现(网上别人写的也很多,但是别人写的总有不满足自己需求的点),实现的方法也很多种,比如动态添加view,使用UICollectionView等等。这种实现方法不是不好,但是当列表比较复杂,数据比较多的时候,可曾想过性能会怎么样呢?

在一次深入了解富文本的时候,突发其想,好像富文本能达到这种效果,也就是一个label就可以实现这种标签的效果了,效果性能就不用多说了,再加上YYLabel的异步绘制,真是锦上添花啊。

XWTagView(高性能标签)

优势:

  • 支持自定义标签外观,上下距离,左右距离,对齐方式;
  • 异步绘制性能得到很大提升。

XWTagMaker(标签外观配置)

#import <Foundation/Foundation.h>
#import <UIKit/UIKit.h>
typedef enum : NSUInteger {
 XWTagAlignmentLeft = 0,
 XWTagAlignmentCenter = 1,
 XWTagAlignmentRight = 2,
} XWTagAlignment;
@interface XWTagMaker : NSObject

//标签边框
@property (nonatomic) CGFloat strokeWidth;

//标签边框颜色
@property (nullable, nonatomic, strong) UIColor *strokeColor;

//路径的连接点形状,] kCGLineJoinMiter(默认全部连接),kCGLineJoinRound(圆形连接),kCGLineJoinBevel(斜角连接)
@property (nonatomic) CGLineJoin lineJoin;

//标签内容内边距
@property (nonatomic) UIEdgeInsets insets;

//标签圆角
@property (nonatomic) CGFloat cornerRadius;

//标签填充颜色
@property (nullable, nonatomic, strong) UIColor *fillColor;

//字体大小
@property (nonatomic,strong) UIFont * _Nullable font;

//字体颜色
@property (nonatomic,strong) UIColor * _Nonnull textColor;

//标签上下间距
@property (nonatomic,assign) CGFloat lineSpace;

//标签左右间距
@property (nonatomic,assign) CGFloat space;

//标签的最大宽度-》以便计算高度
@property (nonatomic,assign) CGFloat maxWidth;

//对齐方式
@property (nonatomic,assign) XWTagAlignment tagAlignment;
@end

以上就是标签外观的一些属性,注释得很清楚,包含了对齐方式,每个属性都有默认值,maxWidth这个属性是必须非空的以便计算高度和换行(默认值是屏幕宽度)

XWTagView(继承自YYLabel)

XWTagView.h

#import "YYText.h"
#import "XWTagMaker.h"
#import "NSMutableAttributedString XWTagView.h"
@interface XWTagView : YYLabel
/**
 *NSMutableAttributedString
 */
@property (nonatomic,strong) NSMutableAttributedString * tagAttr;
@end

XWTagView.m主要代码

XWTagView的内部实现很简单,只是简单的富文本赋值

-(instancetype)init{
 if (self = [super init]) {
  [self initTagView];
 }
 return self;
}

-(instancetype)initWithFrame:(CGRect)frame{
 if (self = [super initWithFrame:frame]) {
  [self initTagView];
 }
 return self;
}

-(void)initTagView{
 self.numberOfLines = 0;
 self.lineBreakMode = NSLineBreakByWordWrapping;
 self.displaysAsynchronously = YES;
}

-(void)setTagAttr:(NSMutableAttributedString *)tagAttr{
 _tagAttr = tagAttr;
 [self initTagView];
 self.attributedText = _tagAttr;
}

NSMutableAttributedString XWTagView的核心代码

1.tip:创建标签的时候在子线程体验更好(生成富文本比较耗时)

#import <Foundation/Foundation.h>
#import <UIKit/UIKit.h>
#import "XWTagMaker.h"
@interface NSMutableAttributedString (XWTagView)
//当前标签富文本的高度
@property (nonatomic,assign) CGFloat tagHeight;
/**
 快速创建tag标签所需样式
 @param tags 字符串数组
 @param maskBlock 初始化标签样式
 @return 标签所需的NSMutableAttributedString
 */
 (NSMutableAttributedString *)xw_makeTagAttributedString:(NSArray<NSString *> *)tags tagMaker:(void (^)(XWTagMaker *))maskBlock;
@end
 (NSMutableAttributedString *)xw_makeTagAttributedString:(NSArray<NSString *> *)tags tagMaker:(void (^)(XWTagMaker *))maskBlock{
 NSMutableAttributedString *text = [NSMutableAttributedString new];
 NSInteger height = 0;
 XWTagMaker *maker = [[XWTagMaker alloc] init];
 if (maskBlock) {
  maskBlock(maker);
 }
 for (int i = 0; i < tags.count; i  ) {
  NSString *tag = tags[i];
  NSMutableAttributedString *tagText = [[NSMutableAttributedString alloc] init];
  //标签左内边距
  [tagText appendAttributedString:[self creatEmptyAttributeString:fabs(maker.insets.left)]];
  //标签内容
  [tagText yy_appendString:tag];
  //标签右内边距
  [tagText appendAttributedString:[self creatEmptyAttributeString:fabs(maker.insets.right)]];
  //设置外观
  [self beautifyAttributedStringWithText:tagText ranges:NSMakeRange(0, tagText.length) maker:maker];
  //左右间距
  [tagText appendAttributedString:[self creatEmptyAttributeString:maker.space]];
  //行间距等设置
  [text appendAttributedString:tagText];
  text.yy_lineSpacing = maker.lineSpace;
  text.yy_lineBreakMode = NSLineBreakByWordWrapping;
  //高度计算(超最大范围加换行符手动换行)
  YYTextContainer *tagContarer = [YYTextContainer new];
  tagContarer.size = CGSizeMake(maker.maxWidth - 3,CGFLOAT_MAX);
  YYTextLayout *tagLayout = [YYTextLayout layoutWithContainer:tagContarer text:text];
  if (tagLayout.textBoundingSize.height > height) {
   if (height != 0) {
    [text yy_insertString:@"\n" atIndex:text.length - tagText.length];

   }
   tagLayout = [YYTextLayout layoutWithContainer:tagContarer text:text];
   height = tagLayout.textBoundingSize.height;
  }
 }

 //高度记录(富文本已扩展高度属性)
 text.tagHeight = height   maker.lineSpace   fabs(maker.insets.top)   fabs(maker.insets.bottom) ;
 //对齐方向设置(头尾自动缩进1.5)
 [text addAttribute:NSParagraphStyleAttributeName value:[self creatTextStyle:maker]
     range:NSMakeRange(0, text.length)];
 return text;
}

 (void) beautifyAttributedStringWithText:(NSMutableAttributedString * )tagText ranges:(NSRange)range maker:(XWTagMaker *)maker{
 //标签字体颜色设置
 tagText.yy_font = maker.font;
 tagText.yy_color = maker.textColor;
 [tagText yy_setTextBinding:[YYTextBinding bindingWithDeleteConfirm:NO] range:tagText.yy_rangeOfAll];
 //设置item外观样式
 [tagText yy_setTextBackgroundBorder:[self creatTextBoard:maker] range:range];
}

/**
 外观样式
 @param maker tag外观配置
 @return 返回YYTextBorder
 */
 (YYTextBorder *)creatTextBoard:(XWTagMaker *)maker{
 YYTextBorder *border = [YYTextBorder new];
 border.strokeWidth = maker.strokeWidth;
 border.strokeColor = maker.strokeColor;
 border.fillColor = maker.fillColor;
 border.cornerRadius = maker.cornerRadius; // a huge value
 border.lineJoin = maker.lineJoin;
 border.insets = UIEdgeInsetsMake(maker.insets.top, 0, maker.insets.bottom, 0);
 return border;
}

 (NSMutableAttributedString *)creatEmptyAttributeString:(CGFloat)width{
 NSMutableAttributedString *spaceText = [NSMutableAttributedString yy_attachmentStringWithContent:[[UIImage alloc]init] contentMode:UIViewContentModeScaleToFill attachmentSize:CGSizeMake(width, 1) alignToFont:[UIFont systemFontOfSize:0] alignment:YYTextVerticalAlignmentCenter];
 return spaceText;

}

 (NSMutableParagraphStyle *)creatTextStyle:(XWTagMaker *)maker{
 NSMutableParagraphStyle *style = [[NSParagraphStyle defaultParagraphStyle] mutableCopy];
 style.lineSpacing = maker.lineSpace;
 style.firstLineHeadIndent = 1.5;
 style.headIndent = 1.5 ;//设置与首部的距离
 style.tailIndent = maker.tagAlignment == NSTextAlignmentRight ? maker.maxWidth - fabs(maker.insets.right) : maker.maxWidth - 1.5; //设置与尾部的距离
 switch (maker.tagAlignment) {
  case XWTagAlignmentLeft:
   style.alignment = NSTextAlignmentLeft;
   break;
  case XWTagAlignmentCenter:
   style.alignment = NSTextAlignmentCenter;
   break;
  case XWTagAlignmentRight:
   style.alignment = NSTextAlignmentRight;
   break;
  default:
   break;
 }
 return style;
}

细心的同学会发现要怎么知道他的高度?(当然如果您用的是自动布局可以不用管这个属性,毕竟label自动布局会自动自适应)从上面代码可以看出来,最后返回的是富文本NSMutableAttributedString,为了更加方便,我便为NSMutableAttributedString扩展了个高度属性tagHeight(当前标签富文本的高度以便外部获取使用和缓存。

看起来很简单,也很容易理解(就是把标签数组变成一个富文本已达到标签的效果),接下来就看看怎么用吧

XWTagView *tagView = [[XWTagView alloc] initWithFrame:CGRectMake(10, 100, self.view.bounds.size.width-20, 50)];
 NSArray<NSString *> *tags = @[
         @"标签tag1",@"表面",@"哈哈哈",@"测试测试",@"不不不不",@"无敌啊",@"标签",@"这样喊得好吗",
         @"哈哈哈",@"嘻嘻嘻",@"呵呵呵",@"标签",@"表面兄弟",@"你好啊",@"不想你了哦",@"不要这样子啦"
         ];
 NSMutableAttributedString *attr = [NSMutableAttributedString xw_makeTagAttributedString: tags tagMaker:^(XWTagMaker *make){
  make.strokeColor = [UIColor redColor];
  make.fillColor = [UIColor clearColor];
  make.strokeWidth = 1;
  make.cornerRadius = 100;
  make.insets = UIEdgeInsetsMake(-2, -6, -2, -6);
  make.font = [UIFont systemFontOfSize:16];
  make.textColor = [UIColor blackColor];
  make.lineSpace = 10;
  make.space = 10;
  make.maxWidth = [UIScreen mainScreen].bounds.size.width - 20;
  make.tagAlignment = XWTagAlignmentLeft;
 }];
 tagView.tagAttr = attr;
 tagView.frame = CGRectMake(10, 100, self.view.bounds.size.width - 20, attr.tagHeight);
 [self.view addSubview:tagView];

看起来是不是很简单,一个make就可以配置标签样式了,如果您是比较复杂的列表的话,这样一个label实现的标签性能完全不用担心,如果您是个追求性能的人,可以开启YYLabel的异步绘制displaysAsynchronously(在iPhone4s上有明显效果)。

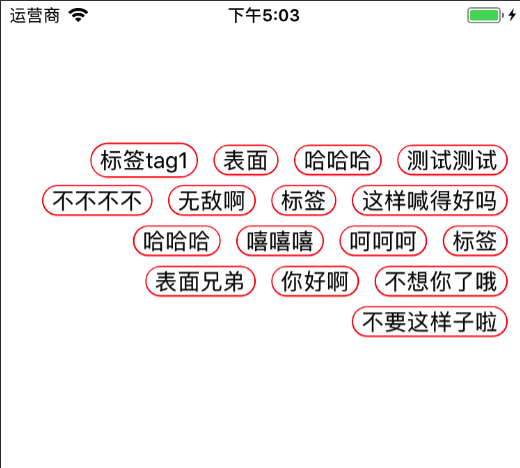

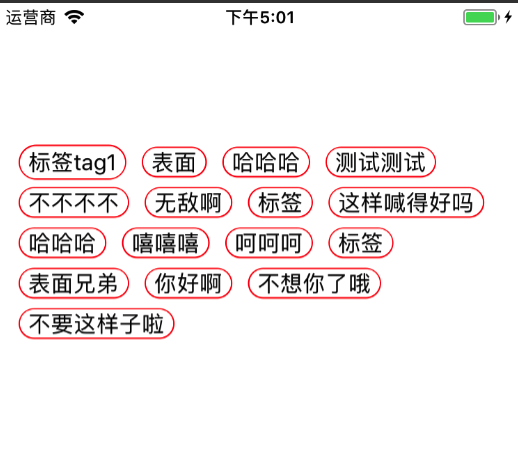

效果图如下



当我以为大功告成的时候,最后还是让我发现了个问题,从上面代码可以看出标签的的左右间隔是用空字符串隔开的(这是一个缺陷,有比较好的解决方法的可以联系我),说到这细心的同学应该可以猜到是什么问题了,你们可曾注意过当label右对齐的时候,最右边的空格或者空字符串是不起作用的,最终想到了个解决办法(首尾自动缩进1.5),可能不是最好的解决方案,但是足以解决出现的问题,详细的见如下代码

 NSMutableParagraphStyle *style = [[NSParagraphStyle defaultParagraphStyle] mutableCopy];
 style.lineSpacing = maker.lineSpace;
 style.firstLineHeadIndent = 1.5;
 style.headIndent = 1.5 ;//设置与首部的距离
 style.tailIndent = maker.tagAlignment == NSTextAlignmentRight ? maker.maxWidth - fabs(maker.insets.right) : maker.maxWidth - 1.5; //设置与尾部的距离
 switch (maker.tagAlignment) {
  case XWTagAlignmentLeft:
   style.alignment = NSTextAlignmentLeft;
   break;
  case XWTagAlignmentCenter:
   style.alignment = NSTextAlignmentCenter;
   break;
  case XWTagAlignmentRight:
   style.alignment = NSTextAlignmentRight;
   break;
  default:
   break;
 }

熟悉富文本的同学都知道tailIndent是与尾部的距离,利用好这一点可以很好的解决问题,后续会加上点击事件。

总结

富文本很强大,能做的不只只这些,很多黑科技等着你去发现哦,当然如果您觉得我写的不错,希望您点个赞。

好了,以上就是这篇文章的全部内容了,希望本文的内容对大家的学习或者工作具有一定的参考学习价值,如果有疑问大家可以留言交流,谢谢大家对Devmax的支持。
