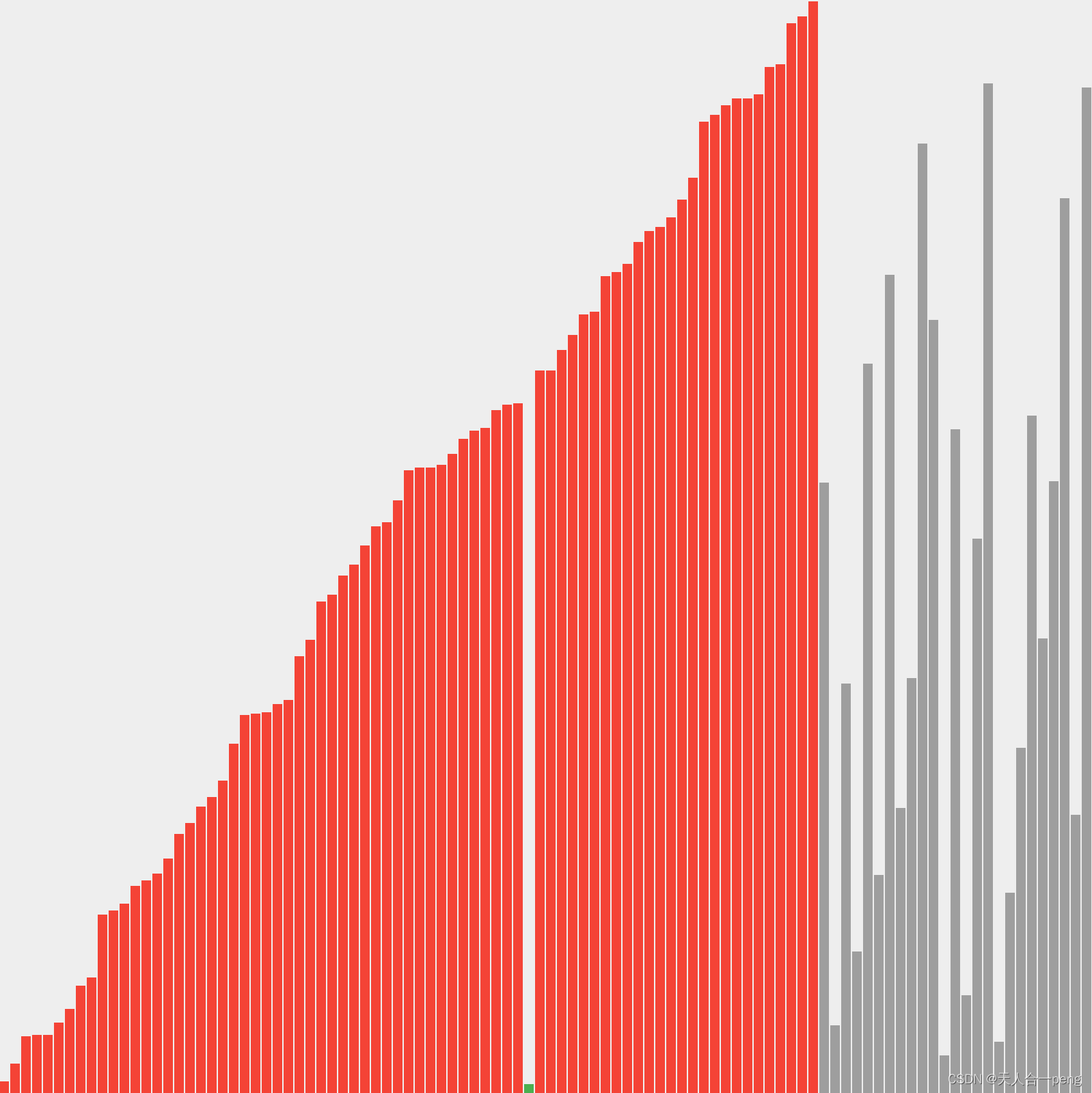

Java实现插入排序算法可视化的示例代码

import java.awt.*;

public class AlgoVisualizer {

    private static int DELAY = 40;

    private InsertionSortData data;
    private AlgoFrame frame;

    public AlgoVisualizer(int sceneWidth, int sceneHeight, int N){

        // 初始化数据
        data = new InsertionSortData(N, sceneHeight);

        // 初始化视图
        EventQueue.invokeLater(() -> {
            frame = new AlgoFrame("Insertion Sort Visualization", sceneWidth, sceneHeight);

            new Thread(() -> {
                run();
            }).start();
        });
    }

    public void run(){

        setData(0, -1);

        for( int i = 0 ; i < data.N() ; i    ){

            setData(i, i);
            for(int j = i ; j > 0 && data.get(j) < data.get(j-1) ; j --){
                data.swap(j,j-1);
                setData(i 1, j-1);
            }
        }
        setData(data.N(), -1);

    }

    private void setData(int orderedIndex, int currentIndex){
        data.orderedIndex = orderedIndex;
        data.currentIndex = currentIndex;

        frame.render(data);
        AlgoVisHelper.pause(DELAY);
    }

    public static void main(String[] args) {

        int sceneWidth = 800;
        int sceneHeight = 800;
        int N = 100;

        AlgoVisualizer vis = new AlgoVisualizer(sceneWidth, sceneHeight, N);
    }
}

import java.awt.*;
import javax.swing.*;

public class AlgoFrame extends JFrame{

    private int canvasWidth;
    private int canvasHeight;

    public AlgoFrame(String title, int canvasWidth, int canvasHeight){

        super(title);

        this.canvasWidth = canvasWidth;
        this.canvasHeight = canvasHeight;

        AlgoCanvas canvas = new AlgoCanvas();
        setContentPane(canvas);
        pack();

        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        setResizable(false);

        setVisible(true);
    }

    public AlgoFrame(String title){

        this(title, 1024, 768);
    }

    public int getCanvasWidth(){return canvasWidth;}
    public int getCanvasHeight(){return canvasHeight;}

    // data
    private InsertionSortData data;
    public void render(InsertionSortData data){
        this.data = data;
        repaint();
    }

    private class AlgoCanvas extends JPanel{

        public AlgoCanvas(){
            // 双缓存
            super(true);
        }

        @Override
        public void paintComponent(Graphics g) {
            super.paintComponent(g);

            Graphics2D g2d = (Graphics2D)g;

            // 抗锯齿
            RenderingHints hints = new RenderingHints(
                    RenderingHints.KEY_ANTIALIASING,
                    RenderingHints.VALUE_ANTIALIAS_ON);
            hints.put(RenderingHints.KEY_RENDERING, RenderingHints.VALUE_RENDER_QUALITY);
            g2d.addRenderingHints(hints);

            // 具体绘制
            int w = canvasWidth/data.N();
            //AlgoVisHelper.setColor(g2d, AlgoVisHelper.Grey);
            for(int i = 0 ; i < data.N() ; i    ) {
                if (i < data.orderedIndex)  // 有序的位置红色否则灰色
                    AlgoVisHelper.setColor(g2d, AlgoVisHelper.Red);
                else
                    AlgoVisHelper.setColor(g2d, AlgoVisHelper.Grey);

                if( i == data.currentIndex )   //当前
                    AlgoVisHelper.setColor(g2d, AlgoVisHelper.Green);
                AlgoVisHelper.fillRectangle(g2d, i * w, canvasHeight - data.get(i), w - 1, data.get(i));
            }
        }

        @Override
        public Dimension getPreferredSize(){
            return new Dimension(canvasWidth, canvasHeight);
        }
    }
}


public class InsertionSortData {

    private int[] numbers;
    public int orderedIndex = -1;   // [0...orderedIndex) 是有序的
    public int currentIndex = -1;

    public InsertionSortData(int N, int randomBound){

        numbers = new int[N];

        for( int i = 0 ; i < N ; i   )
            numbers[i] = (int)(Math.random()*randomBound)   1;
    }

    public int N(){
        return numbers.length;
    }

    public int get(int index){
        if( index < 0 || index >= numbers.length)
            throw new IllegalArgumentException("Invalid index to access Sort Data.");

        return numbers[index];
    }

    public void swap(int i, int j) {
        if( i < 0 || i >= numbers.length || j < 0 || j >= numbers.length)
            throw new IllegalArgumentException("Invalid index to access Sort Data.");

        int t = numbers[i];
        numbers[i] = numbers[j];
        numbers[j] = t;
    }
}

import javax.swing.*;
import java.awt.*;
import java.awt.geom.*;

import java.lang.InterruptedException;

public class AlgoVisHelper {

    private AlgoVisHelper(){}

    public static final Color Red = new Color(0xF44336);
    public static final Color Pink = new Color(0xE91E63);
    public static final Color Purple = new Color(0x9C27B0);
    public static final Color DeepPurple = new Color(0x673AB7);
    public static final Color Indigo = new Color(0x3F51B5);
    public static final Color Blue = new Color(0x2196F3);
    public static final Color LightBlue = new Color(0x03A9F4);
    public static final Color Cyan = new Color(0x00BCD4);
    public static final Color Teal = new Color(0x009688);
    public static final Color Green = new Color(0x4CAF50);
    public static final Color LightGreen = new Color(0x8BC34A);
    public static final Color Lime = new Color(0xCDDC39);
    public static final Color Yellow = new Color(0xFFEB3B);
    public static final Color Amber = new Color(0xFFC107);
    public static final Color Orange = new Color(0xFF9800);
    public static final Color DeepOrange = new Color(0xFF5722);
    public static final Color Brown = new Color(0x795548);
    public static final Color Grey = new Color(0x9E9E9E);
    public static final Color BlueGrey = new Color(0x607D8B);
    public static final Color Black = new Color(0x000000);
    public static final Color White = new Color(0xFFFFFF);

    public static void strokeCircle(Graphics2D g, int x, int y, int r){

        Ellipse2D circle = new Ellipse2D.Double(x-r, y-r, 2*r, 2*r);
        g.draw(circle);
    }

    public static void fillCircle(Graphics2D g, int x, int y, int r){

        Ellipse2D circle = new Ellipse2D.Double(x-r, y-r, 2*r, 2*r);
        g.fill(circle);
    }

    public static void strokeRectangle(Graphics2D g, int x, int y, int w, int h){

        Rectangle2D rectangle = new Rectangle2D.Double(x, y, w, h);
        g.draw(rectangle);
    }

    public static void fillRectangle(Graphics2D g, int x, int y, int w, int h){

        Rectangle2D rectangle = new Rectangle2D.Double(x, y, w, h);
        g.fill(rectangle);
    }

    public static void setColor(Graphics2D g, Color color){
        g.setColor(color);
    }

    public static void setStrokeWidth(Graphics2D g, int w){
        int strokeWidth = w;
        g.setStroke(new BasicStroke(strokeWidth, BasicStroke.CAP_ROUND, BasicStroke.JOIN_ROUND));
    }

    public static void pause(int t) {
        try {
            Thread.sleep(t);
        }
        catch (InterruptedException e) {
            System.out.println("Error sleeping");
        }
    }

    public static void putImage(Graphics2D g, int x, int y, String imageURL){

        ImageIcon icon = new ImageIcon(imageURL);
        Image image = icon.getImage();

        g.drawImage(image, x, y, null);
    }

    public static void drawText(Graphics2D g, String text, int centerx, int centery){

        if(text == null)
            throw new IllegalArgumentException("Text is null in drawText function!");

        FontMetrics metrics = g.getFontMetrics();
        int w = metrics.stringWidth(text);
        int h = metrics.getDescent();
        g.drawString(text, centerx - w/2, centery   h);
    }
}
